| Specifications | |
| Pixel Pitch (mm): | 3.9 / 4.8 / 6.25 / 7.8 / 10.4 |
| Brightness (nits): | 6000 --10000nits |
| Refresh Rate(Hz): | 1920-3840 |
| Application: | Outdoor Advertising LED Billboard |
Cinstar X series outdoor LED advertising billboard display offers two options to choose. Plastic module casing is cost effective and competitive for bid projects. While aluminum module casing solution performs better in heat dissipation and more durable at harsh weather conditions.
Cinstar X series outdoor LED advertising billboard display is featured with high level IP rating (IP66) and supreme cooling design to guarantee the best reliability and performance. All the quality components and user friendly design enable it the best solution to maximize your ROI.

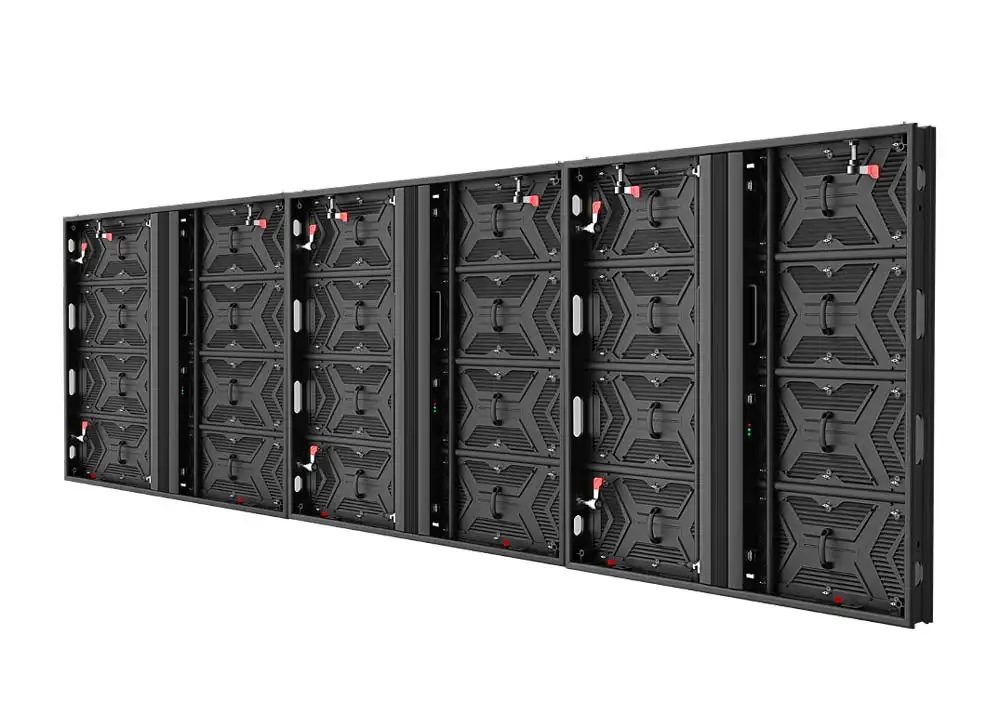

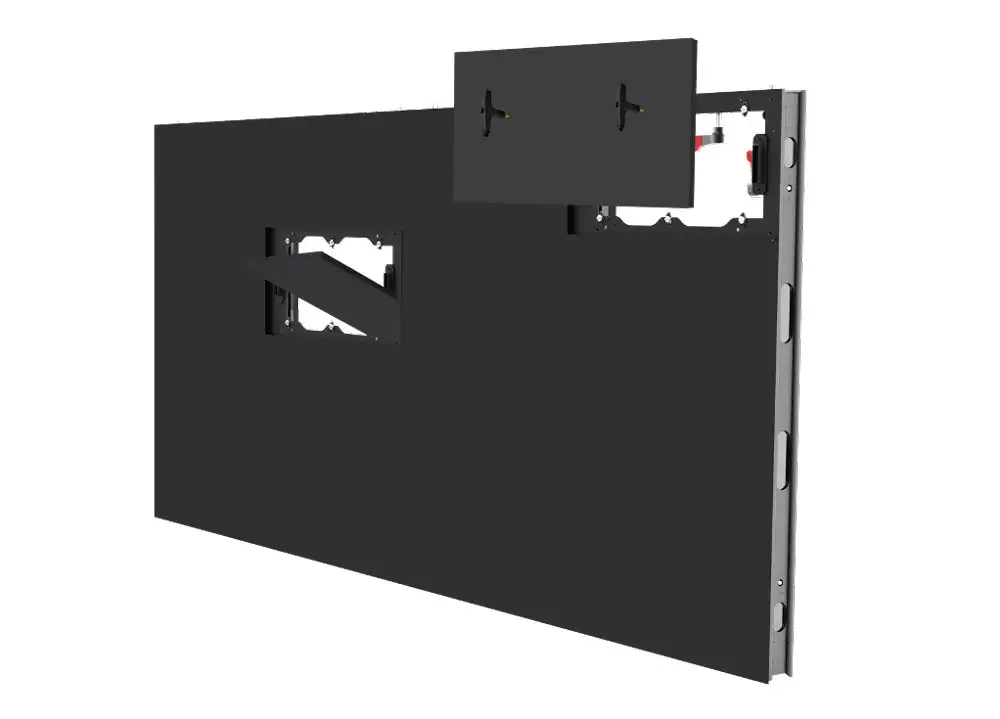

Cinstar X series LED advertising billboard display can be maintained easily from both front and rear with a service wrench. It takes only a few steps to maintain the modules and other parts, minimum labor required. The handles and locks can extremely accelerate the installation and make it really easy and fast.
Adopting aluminum alloy material, the panel weight of Cinstar X series (panel weight 25KG, panel depth 110mm) outdoor LED advertising billboard display is only 50% of traditional steel ones. Which saves at least 20% of the steel frame cost. Ultra slim panel requires narrower installation space and more adaptive to various applications.
Thanks to the fanless design, Cinstar X series outdoor LED advertising billboard display is running without any noise and enable the display working more stable at dusty and humid areas. Module casing exposed in the air directly for better heating dissipation, no need air conditioners for cooling.

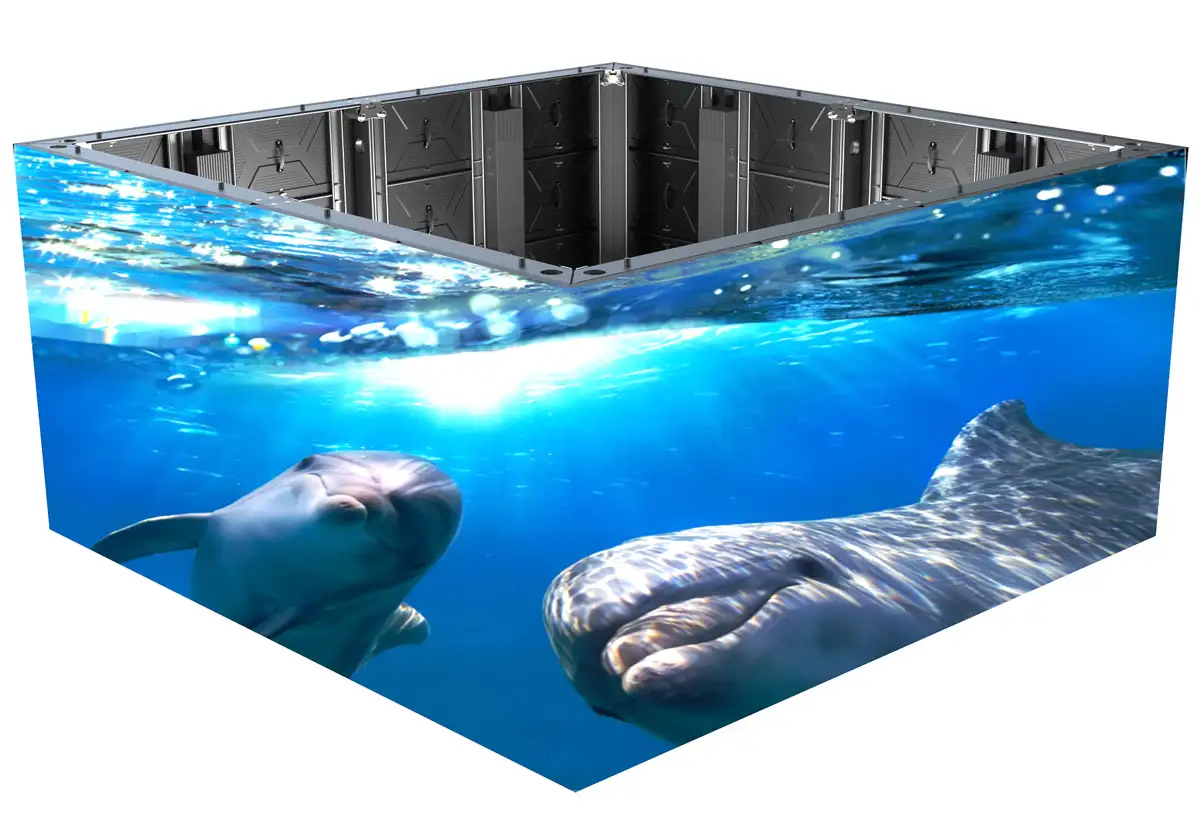

Cinstar X series outdoor LED advertising billboard panel can be customized with seamless right angle to deliver eye-catching naked eye 3D effects. With such unique design, you can easily build a spectacular LED billboard to attract people and maximize its commercial values.

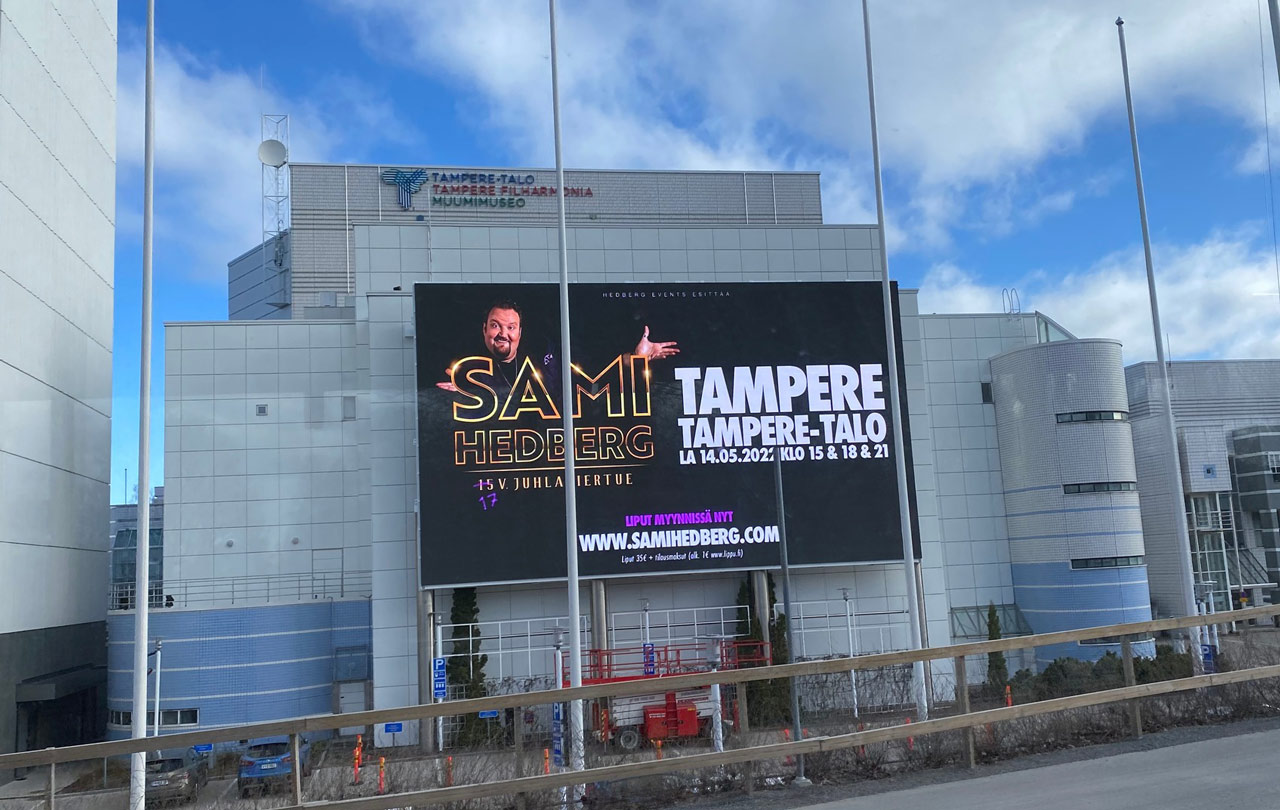

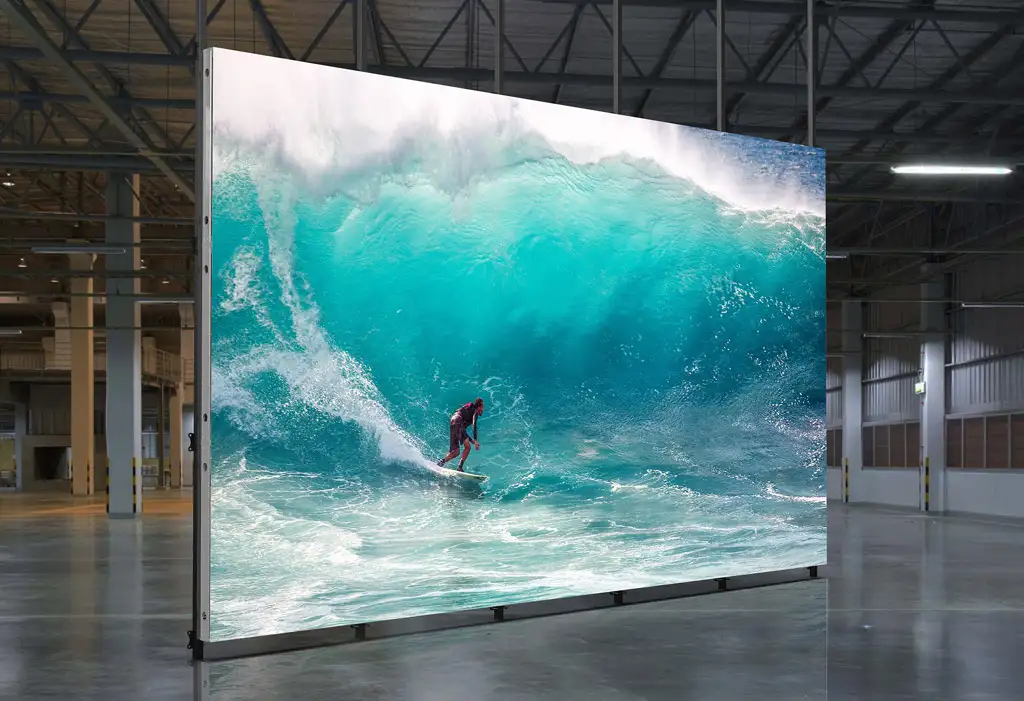

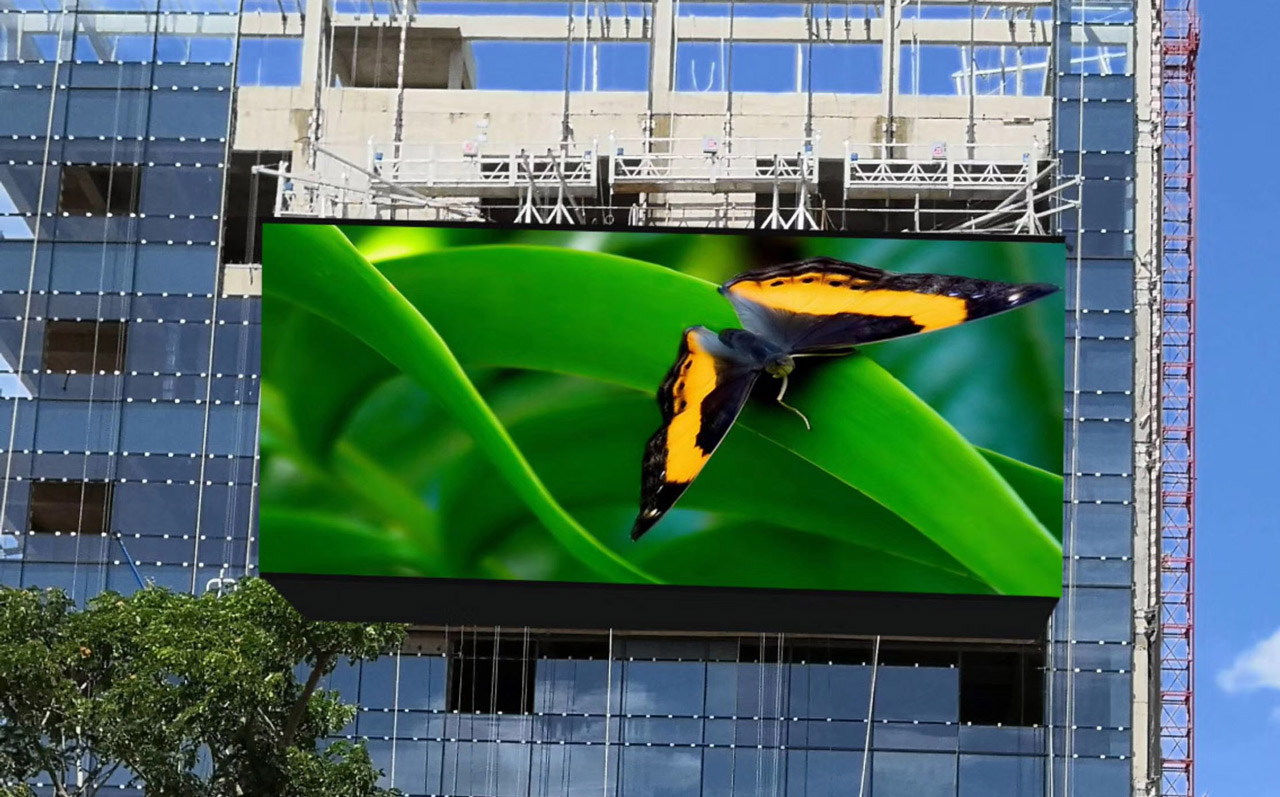

Cinstar X series outdoor LED advertising billboard display is an ideal solution for high profile outdoor commercial advertising applications. Its top stability, superb visibility and extraordinary image performance make it the new icon for outdoor billboard advertising at pedestrian mall, shopping centers, theme parks, shopping malls and other high traffic areas.
High profile aluminum alloy panel
Top stability and reliability display board
Fast installation and easy maintenance
Slim and light weight panel design
Excellent heat dissipation and IP66 waterproof
Ideal outdoor advertising display solution
| X3 | X4 | X6 | X7 | X10 | |
| Pixel Pitch (mm) | 3.91 | 4.81 | 6.25 | 7.81 | 10.42 |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Panel Size (WxH)/(mm) | 1000x1000 | 1000x1000 | 1000x1000 | 1000x1000 | 1000x1000 |
| Pixel Per Panel | 256x256 | 208x208 | 160x160 | 128x128 | 96x96 |
| Panel Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Panel Weight (kg) | 25 | 25 | 25 | 25 | 25 |
| Module Size (WxH)/(mm) | 500x250 | 500x250 | 500x250 | 500x250 | 500x250 |
| Brightness (nit) | 6000-10000 | 6000-10000 | 6000-10000 | 6000-10000 | 6000-10000 |
| Refresh Rate (Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 160/120 | 160/120 | 160/120 | 160/120 | 160/120 |
| AC Operating Voltage (V) | 110~220(±5%) 50/60Hz | 110~220(±5%) 50/60Hz | 110~220(±5%) 50/60Hz | 110~220(±5%) 50/60Hz | 110~220(±5%) 50/60Hz |
| Avg. Power Consumption (W) | 200/sqm | 200/sqm | 200/sqm | 200/sqm | 200/sqm |
| Max. Power Consumption (W) | 500/sqm | 500/sqm | 500/sqm | 500/sqm | 500/sqm |
| Storage Temperature (℃) | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating Temperature (℃) | ﹣20~﹢65 | ﹣20~﹢65 | ﹣20~﹢65 | ﹣20~﹢65 | ﹣20~﹢65 |
| IP Rating (Front/Rear) | IP66 | IP66 | IP66 | IP66 | IP66 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 | 100000 |
| Module Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Certificate | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS |
