U SERIES
UHD Fine Pitch LED Video Wall Solution
Specifications
Pixel Pitch (mm): 0.93 / 1.25 / 1.56 / 1.87
Brightness (nits): up to 1000
Refresh Rate(Hz): 3840
Application: UHD Image Production
Key Features
  • Die-cast aluminum housing
  • UHD superb visual impact
  • Seamless video splicing technology
  • 160 degree ultra-wide viewing angle
  • Front installation & maintenance
  • Available in wall mounting and ground stacking
TL SERIES
TL SERIES

UHD Superb Visual Impact

Featuring the Black LEDs, Cinstar U series fine pixel pitch LED wall provides a superior HD image with high contrast ratio 6000:1, high refresh rate to 3840Hz, deep blacks and vibrant colors. High quality image output is guaranteed for TV productions. The pixel pitches range from 0.93mm to 1.87mm.


Seamless Video Splicing Technology

Cinstar U series fine pitch LED panel construction is made of ultra-high precision die-cast aluminum with tolerance < 0.2mm. In addition, it is capable of module-level fine adjustment, which ensures truly seamless connection and excellent image quality.

TL SERIES

TL SERIES

Ultra Wide Viewing Angle

Black LEDs with optically trap lampshade to provide significant optical effect. The ultra-wide viewing angle 160° enables spectators at any angle can enjoy a great visual experience. Cinstar U series is capable of various installations like wall mounting, hanging or ground stacking etc.


Front Installation & Maintenance

Cinstar U series supports fully front installable and serviceable. Easier for installation and maintenance. Which requires no maintenance space and is the ideal video system for against the wall installation.

TL SERIES
U SERIES Features

Die-cast aluminum housing

UHD superb visual impact

Seamless video splicing technology

Ultra-wide viewing angle 160 degree

Front installation & maintenance

Available in wall mounting and stacking

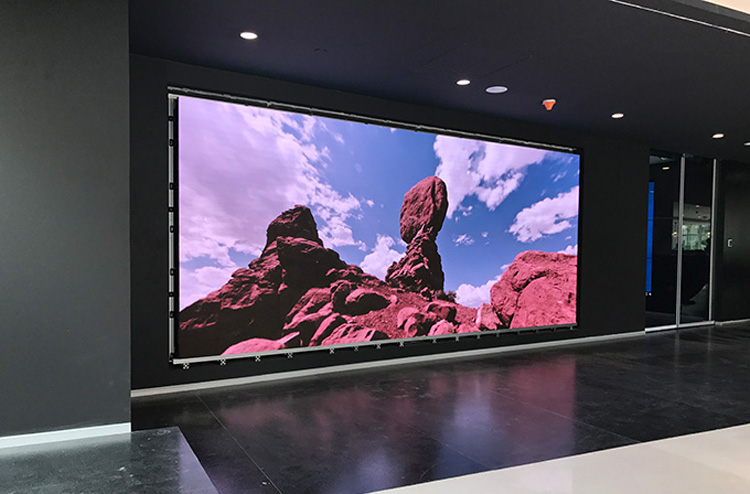

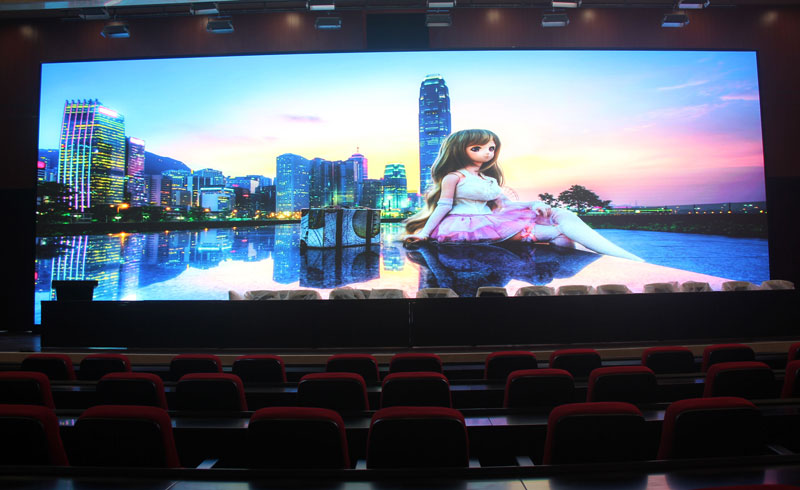

U SERIES Showcase
Technical Specification
U0.9 U1.2 U1.5 NL1.8
Pixel Pitch (mm) 0.93 1.25 1.56 1.875
LED Type Mini LED 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (WxH)/(mm) 300x168.75 300x168.75 300x168.75 300x168.75
Panel Size (WxH)/(mm) 600x337.5 600x337.5 600x337.5 600x337.5
Pixel Per Panel 640x320 480x270 384x216 320x180
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (kg) 4.8 4.8 4.8 4.8
Brightness (nit) 300-500 600 700 800
Refresh Rate (Hz) 3840 3840 3840 3840
Gray Scale (bit) 16 16 16 16
Viewing Angle (H/V) (°) 160/160 160/160 160/160 160/160
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 220/sqm 220/sqm 220/sqm 220/sqm
Max. Power Consumption (W) 670/sqm 670/sqm 670/sqm 670/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21
LED Lifetime (H) 100000 100000 100000 100000
Module Maintenance Front Front Front Front
PSU & Others Maintenance Front Front Front Front
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
