TS SERIES

Commercial Media LED Video Display Solutions

Specifications
Pixel Pitch (mm): 2.8 / 3.9 / 7.8 / 10.4 / 15.6
Brightness (nits): up to 5500
Refresh Rate(Hz): >1920
Application: Indoor Fixed
Key Features
  • High transparency up to 70%
  • Hidden cable layout, clean screen appearance
  • Flat or flexible panels for option
  • Customizable panel size and color for specific projects
TS-Series
TS-Series

High Transparency LED Video Display

High transparency (up to 70%) ensures no any daylight or vision will be blocked out. High brightness of 3000-6000nits assures superb visual performance at any installation environments. Pixel pitch ranges from 2.8mm to 10.4mm.


Flexible Panel For Option

Cinstar TS series LED video display offers different panel designs for specific installations. It can be flat or flexible to create eye-catching design like big wave or cylinder screens. A perfect choice for shopping mall, Auto 4S store, exhibitions, concert and theater installations. What is more, the LED display panel can be customized to meet the glass wall building installation.

TS-Series

TS-Series

Exquisite Aesthetic Design

All cables hidden inside the rear vertical power box to make sure the whole screen looks concise and clean. The customizable color of panel frame makes it possible to merge into surroundings, which is perfect to achieve an immersive visual experience.

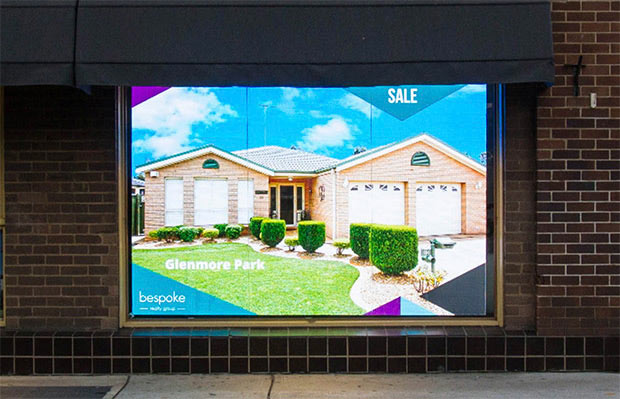

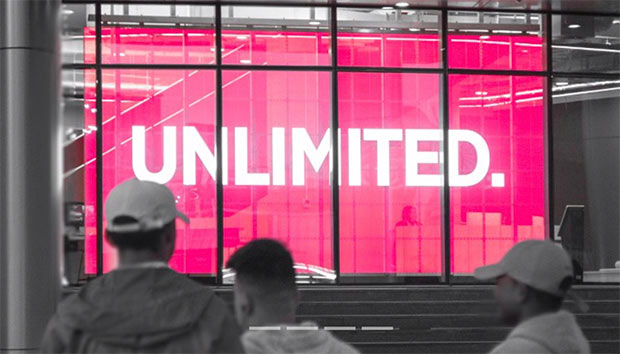

TS Series Showcase
Technical Specification
TS2.8 TS3.9 TS7.8 TS10.4 TS15.6
Pixel Pitch (mm) 2.8-5.7 3.91-7.82 7.82-7.82 10.4-10.4 15.62-15.62
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Panel Size (WxH)/(mm) 1000x500 1000x500 1000x500 1000x500 1000x500
Pixel Per Panel 356x88 256x64 128x64 96x48 64x32
Panel Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Panel Weight (kg) 5 5 5 5 5
Brightness (nit) 800-6000 800-6000 800-6000 800-6000 800-6000
Refresh Rate (Hz) >1920 >1920 >1920 >1920 >1920
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 120/120 120/120 120/120 120/120 120/120
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 210/sqm 210/sqm 210/sqm 210/sqm 210/sqm
Max. Power Consumption (W) 630/sqm 630/sqm 630/sqm 630/sqm 630/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP22 IP22 IP22 IP22 IP22
LED Lifetime (H) 100000 100000 100000 100000 100000
Module Maintenance Front Front Front Front Front
PSU & Others Maintenance Rear Rear Rear Rear Rear
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
