TR SERIES

Creative Effect LED Video Display Solutions

Specifications
Pixel Pitch (mm): 3.91 / 6.25 / 7.82
Brightness (nits): up to 5500
Refresh Rate(Hz): >1920
Application: Fixed/Rental
Key Features
  • Ultra high transparency up to 80%
  • High brightness up to 5000nits
  • Easy and quick installation
  • Customizable for specific applications
TR-SERIES
TR-SERIES

Creative Effect Solutions

Cinstar TR Series LED video display offers ultra-high transparency screens for rental events and commercial advertising installations. The pixel pitch ranges from 3.9mm to 7.8mm.

Advanced GOB technology can be adopted on this LED screen display to improve stability of the system (less LED falling when incident collision) and make it possible for outdoor waterproof applications. In addition, a transparent acrylic plate can be installed in front of the panel to protect LEDs, if needed.

The fast locking system and giant installation pins ensure quick and easy installation. Which makes it excellent to be used as rental stage main background or creative effect display. The ultra-high transparency enables it a perfect choice for window installations such as shopping center, restaurant, jewelry store and fashion shop etc.

Featuring high brightness LEDs, high refresh rate driver IC, huge viewing angle, wide color gamut and anti-glowing, Cinstar TR series LED video display is capable of delivering a remarkable visual performance for any kind of installations.

TR Series Features

Ultra high transparency up to 80%

High brightness up to 5000nits

Easy and quick installation

Customisable for specific applications

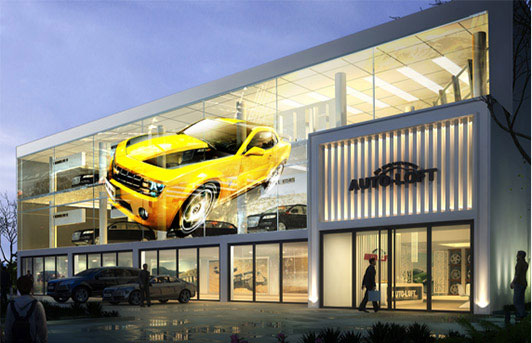

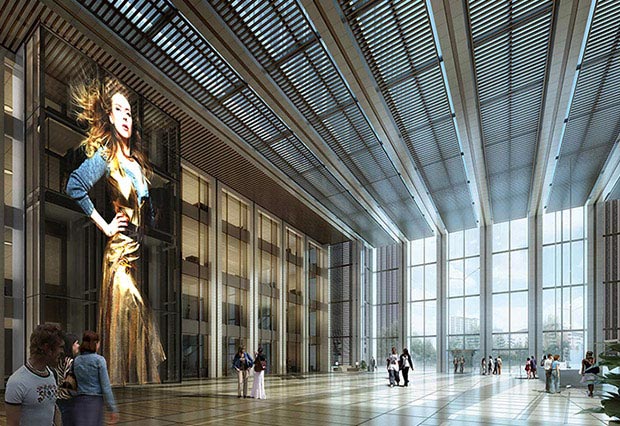

TR Series Showcase
Technical Specification
TR3.91 TR6.25 TR7.82
Pixel Pitch (mm) 3.91-7.82 6.25-6.25 7.82-7.82
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Panel Size (WxH)/(mm) 1000x500 1000x500 1000x500
Pixel Per Panel 256x64 160x80 128x64
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (kg) 7 7 7
Brightness (nit) >4500 >4500 >4500
Refresh Rate (Hz) >1920 >1920 >1920
Gray Scale (bit) 16 16 16
Viewing Angle (H/V) (°) 120/120 120/120 120/120
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 210/sqm 220/sqm 210/sqm
Max. Power Consumption (W) 630/sqm 660/sqm 630/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP33 IP33 IP33
LED Lifetime (H) 100000 100000 100000
Module Maintenance Front Front Front
PSU & Others Maintenance Rear Rear Rear
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
