T SERIES

Cost-Effective Rental LED Display Solutions

Specifications
Pixel Pitch (mm): 1.9 / 2.6 / 2.9 / 3.9 / 4.8
Brightness (nits): up to 5500
Refresh Rate(Hz): 1920-3840
Application: Fixed/Rental
Key Features
  • High standard CNC ensures seamless screen connection
  • Ultra thin and light weight panel design
  • Quick changeable rear control unit
  • Ergonomically designed handle for convenient manipulation
  • Fast and reliable lock system enables quick installation and dismantle
  • Various installations include suspension, ground stacking or curved
T-SERIES
T-Case-Show

User-Friendly LED Video Displays

Aim to supply the most cost-effective rental LED video display solution for indoor and outdoor rental events applications, Cinstar T series utilizes high standard components selection to achieve high grey scale and refresh rate thereby making sure the ultimate image quality on Cinstar rental LED video display.

T series LED video display was designed with a maximum focus on practicability and reliability. The modular LED video panels are built around a robust and light weight die-casting aluminum frame, easy to operate and maintain.

With inbuilt feet and edge protectors, physical damage during transportation and assembly can be largely avoided and greatly improve its stability.

T series LED video display comes equipped with a classic fast locking system for rapid installation and dismantle, a flexible curving system allowing creative convex and concave set ups, suspension and floor stacking installation and convenient module front access service.

Cinstar T series LED video display is widely used at car show, wedding ceremony, fashion show, corporate exhibition and award ceremony to deliver ultimate visual impact.

T Series Features

High precision CNC ensures seamless screen connection

Ultra thin and light weight panel design

Quick changeable rear control unit

Ergonomically designed handle for convenient manipulation

Fast and durable lock system enables quick assemble and dismantle

Various installations include suspension, ground stacking or curved

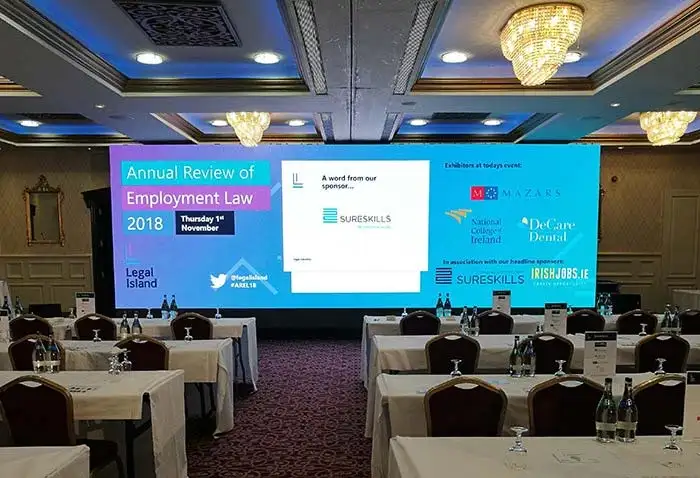

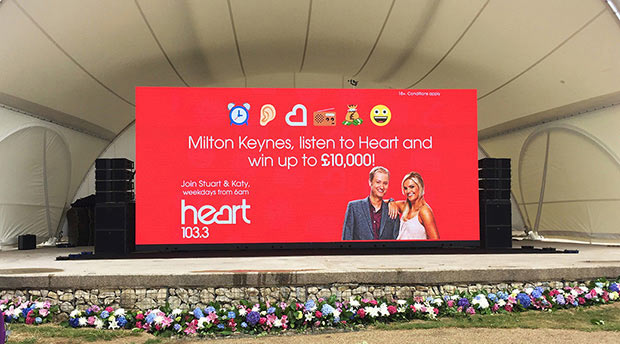

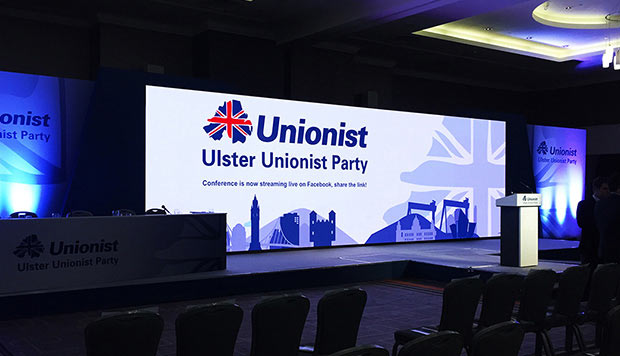

T Series Showcase
Technical Specification
T2.6 T2.9 T3.9 T2.9(Outdoor) T3.9(Outdoor)
Pixel Pitch (mm) 2.6 2.97 3.91 2.97 3.91
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (WxH)/(mm) 250x250 250x250 250x250 250x250 250x250
Panel Size (WxH)/(mm) 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000
Pixel Per Panel 192x192 / 192x384 168x168 / 168x336 128x128 / 128x256 168x168 / 168x336 128x128 / 128x256
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (kg) 7.5 / 14 7.5 / 14 7.5 / 14 7.8 / 14.5 7.8 / 14.5
Brightness (nit) > 1000 > 1000 > 1200 > 5500 > 5500
Refresh Rate (Hz) 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 160/160 160/160 160/160 160/140 160/140
Avg. Power Consumption (W) 240/sqm 210/sqm 218/sqm 236/sqm 243/sqm
Max. Power Consumption (W) 720/sqm 630/sqm 654/sqm 708/sqm 729/sqm
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP65 IP65
LED Lifetime (H) 100000 100000 100000 100000 100000
Module Maintenance Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
PSU & Others Maintenance Rear Rear Rear Rear Rear
