ST SERIES

Most Cost-Effective Outdoor Advertising Display Solution

Specifications
Pixel Pitch (mm): 4 / 5 / 6 / 8 / 10
Brightness (nits): >6500
Refresh Rate(Hz): <3840
Application: Rear Service Outdoor Advertising
Key Features
  • Durable classic market tested design
  • Customized panel sizes cater to projects
  • Wide range of options
  • High IP rating & excellent reliability
  • Super wide viewing angle
ST SERIES-1
ST SERIES-2

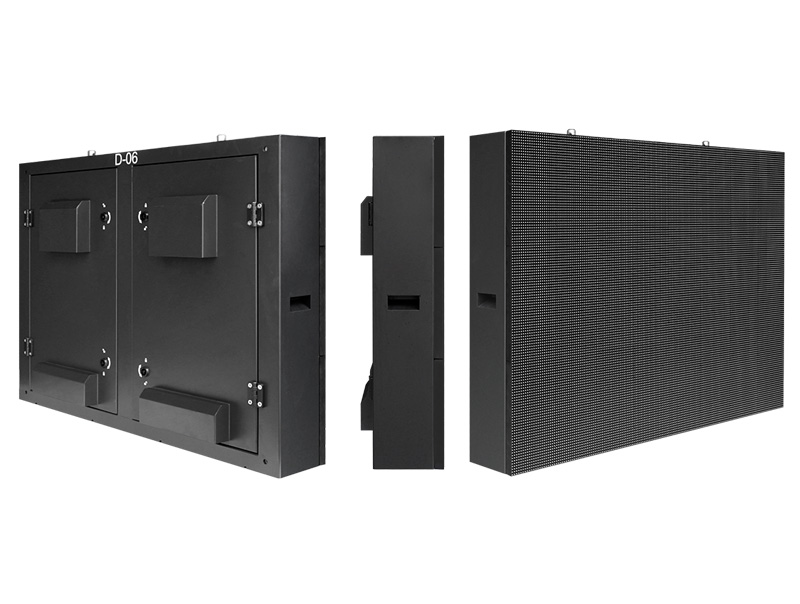

Durable Classic Market Tested Design

Cinstar ST series outdoor LED billboard is especially designed for permanent outdoor fixed installations. Its durability and stability has been widely tested by the market for more than 10 years and approved to be the most cost-effective digital billboard solution for out of home advertising.

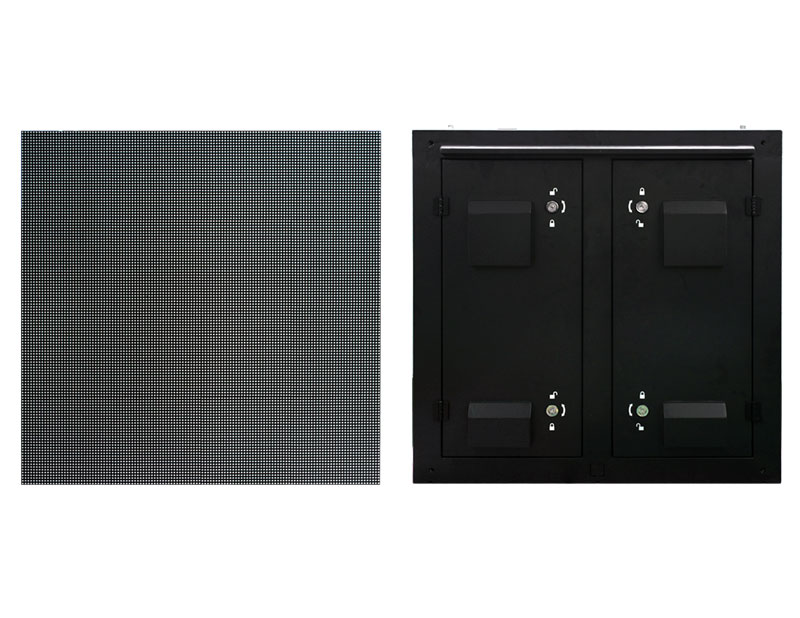

Customized Panel Sizes Cater to Projects

The panel size of Cinstar ST series outdoor advertising billboard display can be customized to different sizes based on module sizes, to meet the most desired screen dimension and requirements.

ST SERIES-3

ST SERIES-4

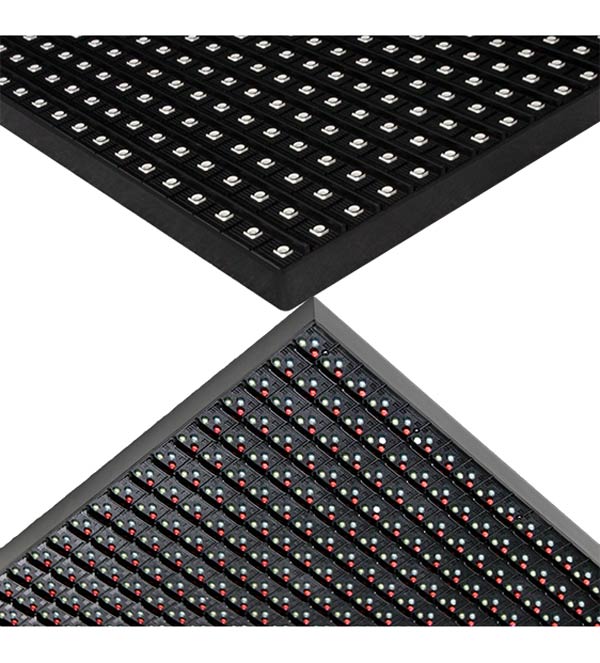

Wide Range of Options

No matter what you are looking for is the most durable DIP or the most soft image production SMD, Cinstar ST series outdoor advertising billboard can offer you wide range of options from P4 to P16, DIP or SMD.


High Protective Grade IP65

Cinstar ST series outdoor advertising billboard was developed specifically for commercial billboards and outdoor digital advertising markets. Designed for fixed outdoor installations, ST series LED billboard is robust and durable, high qualified to withstand any harsh environment factors and suitable for 24/7 operation.

ST SERIES-5

ST SERIES-6

Super Wide Viewing Angle Maximize Your Advertising Venues

Except the most vivid image production and strong visual impact, Cinstar ST series outdoor advertising billboard can provide the ultra-wide viewing angle from 120 to 160 degrees to attract more people's attention. Which is incomparable to any other advertising channels.

ST SERIES Features

Durable classic market tested design

Customized panel sizes cater to projects

Wide range of options

High IP rating & excellent reliability

Super wide viewing angle

Cost-effective outdoor advertising solution

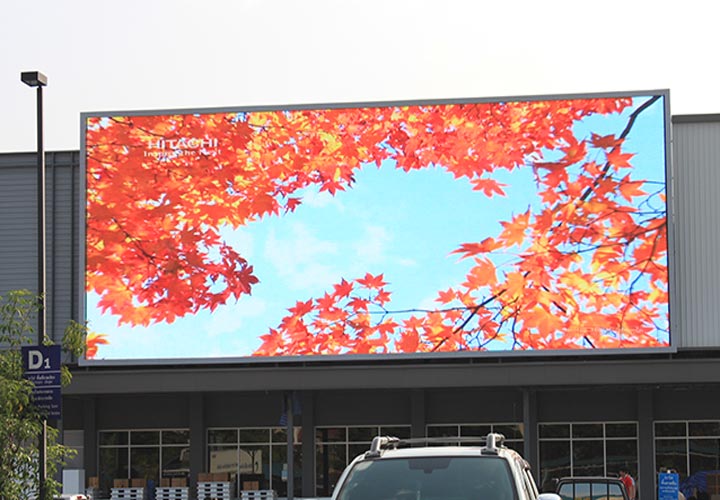

ST SERIES Showcase
Technical Specification
ST4 ST5 ST6 ST8 ST10
Pixel Pitch (mm) 4 5 6 8 10
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (WxH)/(mm) 256x128 160x160 192x192 256x128 320x160
Panel Size (WxH)/(mm) 768x768 640x640 960x768 1024x768 960x960
Pixel Per Panel 192x192 128x128 160x128 128x96 96x96
Panel Material Steel Steel Steel Steel Steel
Brightness (nit) > 6500 > 5500 > 6500 > 6500 > 6500
Refresh Rate (Hz) > 1920 > 1920 > 1920 > 1920 > 1920
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 140/140 140/140 140/140 140/140 140/140
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP65 IP65 IP65 IP65 IP65
LED Lifetime (H) 100000 100000 100000 100000 100000
Maintenance Method Rear Rear Rear Rear Rear
contact

Wanna Upgrade Your Next Projects?
