SA SERIES
Cost-Effective Sport Arena Video Solution
Specifications
Pixel Pitch (mm): 4 / 5 / 6 / 8 / 10
Brightness (nits): >6500
Refresh Rate(Hz): <3840
Application: Sports Arena Advertising
Key Features
  • Solid LED perimeter banner solution
  • Soft module mask to prevent injury
  • Adjustable supporting brackets
  • Great stability & durability
  • Multifunction for sports events
  • Comprehensive image solution
SA SERIES
SA SERIES

Solid LED Perimeter Banner Solution

Cinstar SA series stadium LED banner system is featured with slim and light weight panel for easy installation and transportation. Super High refresh rate 3840Hz and excellent gray scale 16bit ensuring the superb image production.


Soft Module Mask To Prevent Injury

Cinstar SA series stadium perimeter banner system is using soft rubber module mask to protect LEDs from ball punching. What more important is that the soft module mask can effectively protect athletes from severe injury when collision to LED system by accident.

SA SERIES

SA SERIES

Adjustable Supporting Brackets

Cinstar SA series outdoor stadium perimeter banner system adopted flexible supporting brackets which can be adjusted to different lean angles to meet the best shooting angle for cameras and spectators. Which helps to maximize its business value and brings more advertising revenue.


Great Stability & Durability

Cinstar SA series stadium perimeter banner system is featured with high level IP rating and supreme cooling design to guarantee the best reliability and performance. All the quality components and user friendly design enable it the best solution to maximize your ROI.

SA SERIES

SA SERIES

Multifunction For Sports Events

Except used as perimeter banner system, Cinstar SA series sports arena LED system can be installed as scoreboards, live feed video screen or served as advertising billboard by folding up the bracket and get rid of the panel top cushion. It is an ideal video solution for stadium, sport arena and horse racing etc.


Comprehensive Image Solution

Normally perimeter display is a long banner with horizontal pixels over the limit of monitor 3840pixels, the whole perimeter banner will be divided into several batches to show same content. But we have solution to make the screen display a complete image even if the pixels more than 30k or even more.

SA SERIES
SA SERIES Features

Solid LED perimeter banner solution

Soft module mask to prevent injury

Adjustable supporting brackets

Great stability & durability

Multifunction for sports events

Comprehensive image solution

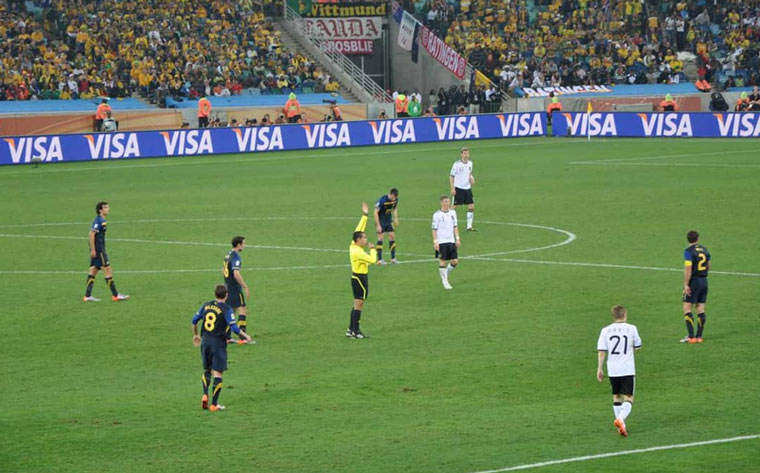

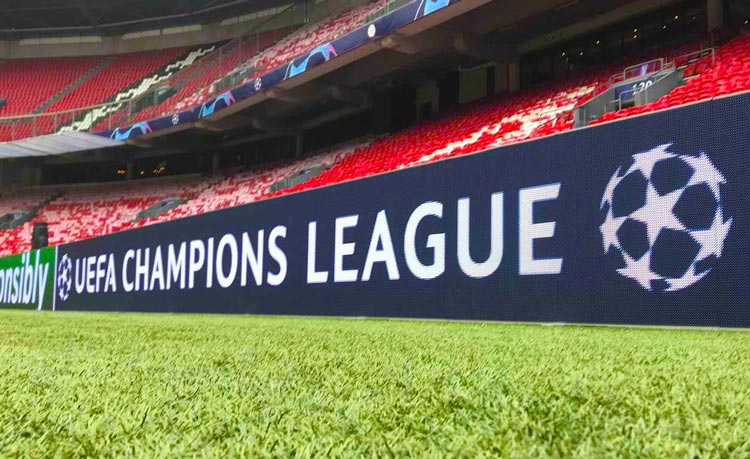

SA SERIES Showcase
Technical Specification
SA4 SA5 SA6 SA8 SA10
Pixel Pitch (mm) 4 5 6 8 10
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (WxH)/(mm) 256x128 160x160 192x192 256x128 320x160
Panel Size (WxH)/(mm) 768x768 640x640 960x768 1024x768 960x960
Pixel Per Panel 192x192 128x128 160x128 128x96 96x96
Panel Material Aluminum Aluminum Aluminum Aluminum Aluminum
Brightness (nit) > 6500 > 5500 > 6500 > 6500 > 6500
Refresh Rate (Hz) > 1920 > 1920 > 1920 > 1920 > 1920
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) ﹣20~﹢60 140/140 140/140 140/140 140/140
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP65 IP65 IP65 IP65 IP65
LED Lifetime (H) 100000 100000 100000 100000 100000
Maintenance Method Rear Rear Rear Rear Rear
