N SERIES

Rental Production LED Video Display

Specifications
Pixel Pitch (mm): 1.9 / 2.6 / 2.9 / 3.9 / 4.8
Brightness (nits): up to 5500
Refresh Rate(Hz): 1920-3840
Application: Fixed/Rental
Key Features
  • Super slim and lightweight panel frame
  • Quick and easy lock design simplifies installation procesures
  • 500x500mm and 500x1000mm panel for options
  • Integrated modular control unit guarantees easy maintenance
  • Versatile installations, hanging, floor stacking or curved
  • Available in both indoor and outdoor options, front or rear service access
n-SERIES
n-Case-Show

Quick And Easy LED Displays

Designed specifically for quick and easy rental events markets, Cinstar N series LED video panels adopt high-precise and lightweight die-casting aluminum frame and easy to use reliable locking system to ensure quick installation and seamless image quality.

Featuring high brightness LEDs, Cinstar N series LED video displays deliver a great visual performance in any light condition. No matter it is outdoor sport event or live broadcast from mobile LED video display, the spectators can always get the vivid and clear images.

The integrated modular control unit at the back which containing power supply and receiving card, can be easily replaced even on site, reducing the servicing time and eliminate any unexpected surprises.

The indicator light and LCD info window on the control unit shows the working status of each LED panel and help locate and diagnose the problem when a failure happened.

Cinstar N series LED video display supports any creative installation like suspension, ground stacking, concave or convex to meet any eye-catching visual designs.

N Series Features

Slim die-cast aluminum lightweight frame

Fast lock design simplifies installation procesures

500x500mm and 500x1000mm panesl for options

Modular control unit guarantees easy maintenance

Versatile installations, hanging, floor stacking or curved

Available in both indoor and outdoor options

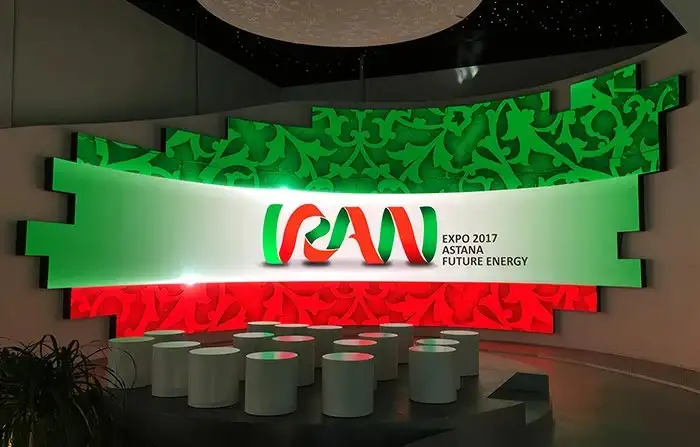

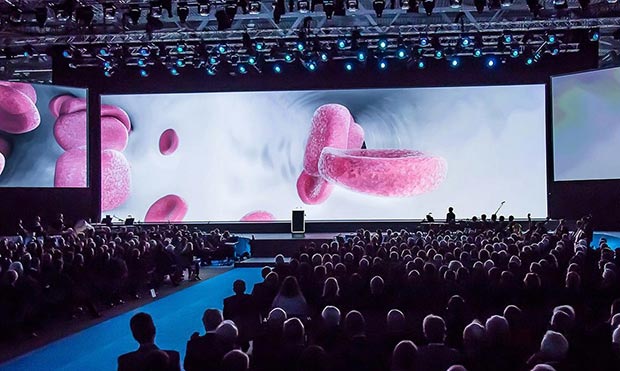

N Series Showcase
Technical Specification
N2.6 N2.9 N3.9 N2.9(Outdoor) N3.9(Outdoor)
Pixel Pitch (mm) 2.6 2.97 3.91 2.97 3.91
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (WxH)/(mm) 250x250 250x250 250x250 250x250 250x250
Panel Size (WxH)/(mm) 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000
Pixel Per Panel 192x192 / 192x384 168x168 / 168x336 128x128 / 128x256 168x168 / 168x336 128x128 / 128x256
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (kg) 7.5 / 14 7.5 / 14 7.5 / 14 7.8 / 14.5 7.8 / 14.5
Brightness (nit) > 1000 > 1000 > 1200 > 5500 > 5500
Refresh Rate (Hz) 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 160/160 160/160 160/160 160/140 160/140
Avg. Power Consumption (W) 240/sqm 210/sqm 218/sqm 236/sqm 243/sqm
Max. Power Consumption (W) 720/sqm 630/sqm 654/sqm 708/sqm 729/sqm
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP65 IP65
LED Lifetime (H) 100000 100000 100000 100000 100000
Module Maintenance Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
PSU & Others Maintenance Rear Rear Rear Rear Rear
