MC SERIES

Media Mesh Solutions

Specifications
Pixel Pitch (mm): 7.81 / 15.625 / 31.25
Brightness (nits): up to 6500
Refresh Rate(Hz): >1920
Application: Outdoor Fixed

Key Features

  • Slim, lightweight and durable
  • High level of transparency
  • Excellent brightness & contrast ratio
  • Advanced IP67 protection
  • Extremely simplified install
  • Both front & rear maintenance options

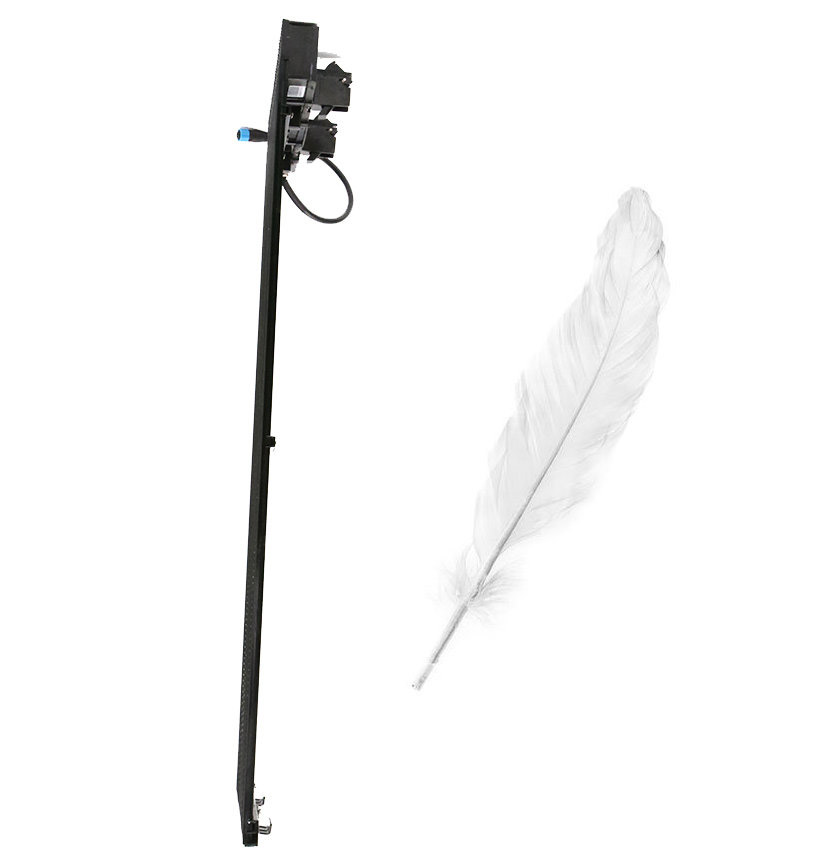

SUPER LIGHT WEIGHT PANEL

Weighs 18 kgs/m2 75% less vs traditional cabinet. The extremely lightweight panel allowing it to be attached to building surfaces with minimising the weight loading.

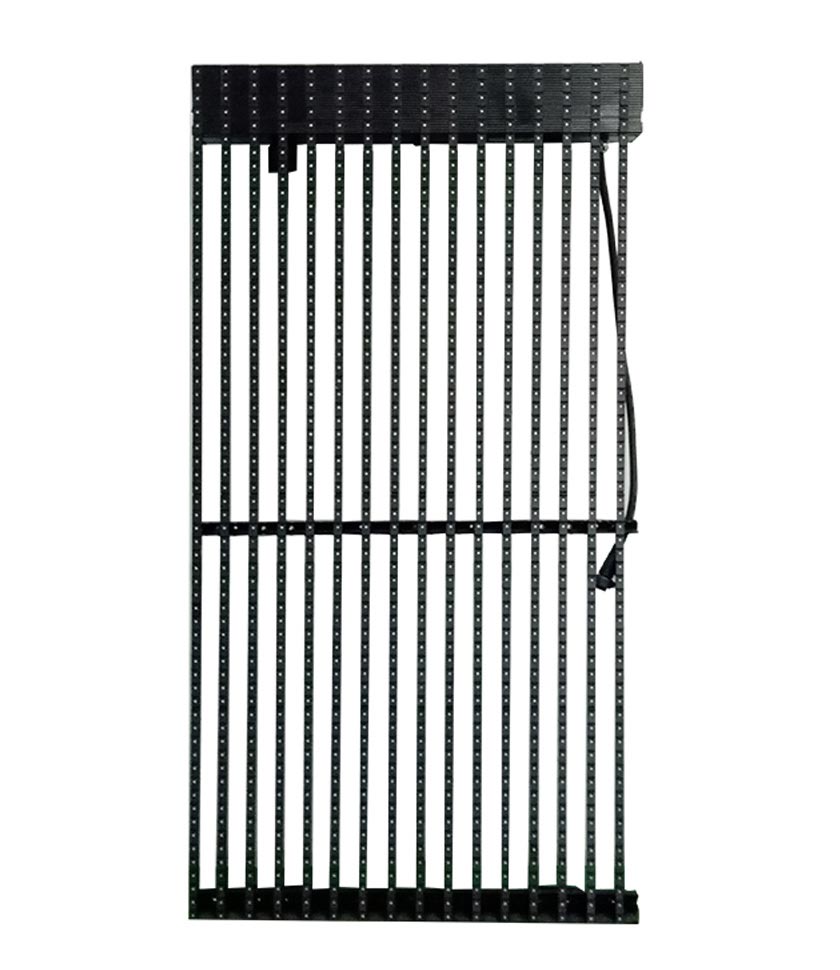

HIGH LEVEL OF TRANSPARENCY

The Cinstar MC series is specifically designed to cater for large format outdoor installations, which require a certain level of transparency, allowing the natural light to flow through the screen. Featuring high bright LEDs, the MC series displays deliver superb visual effects and excellent contrast ratio in any light condition.

FULLY PROTECTED PANEL

With IP67 protection, the panels are built to withstand harsh environmental factors such as direct UV rays, varying temperatures, constant vibrations and severe weather conditions.

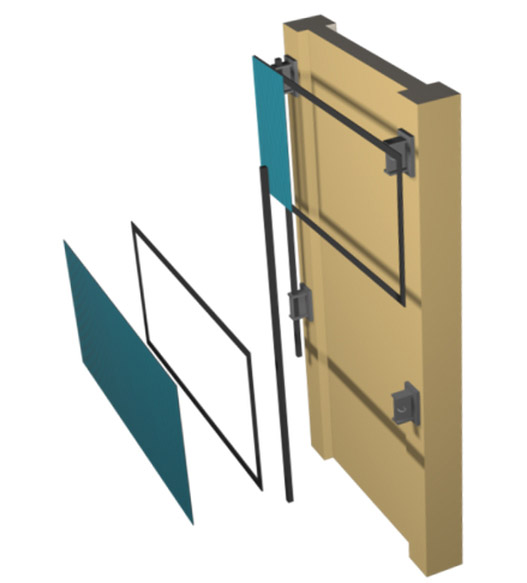

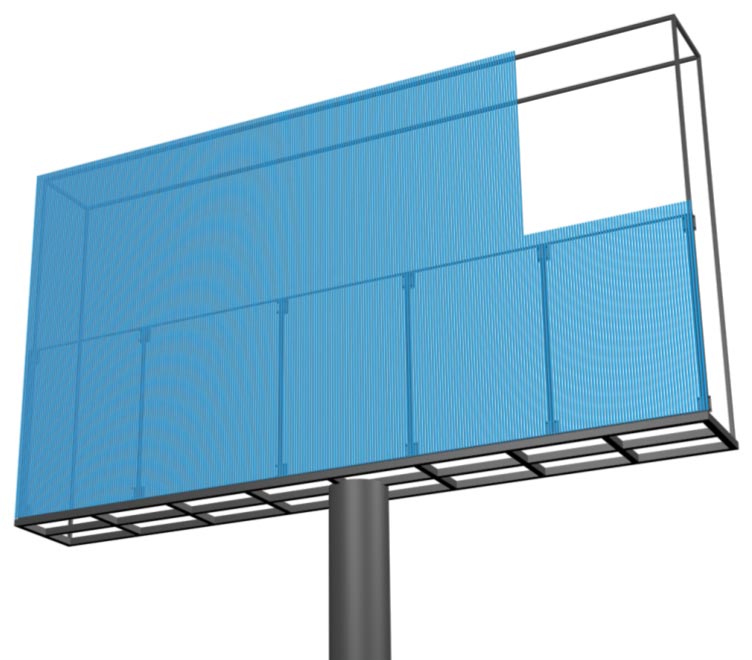

EXTREMELY SIMPLIFIED INSTALL

The ultra light weight panel design enables support structure weight be 80% less vs traditional install. The extremely simplified install couldn't save more on laber and time. The system supports both front and rear access service.

MC SERIES FEATURES

Slim, lightweight and durable

High level of transparency

Excellent brightness and contrast ratio

Advanced IP67 protection

Extremely simplified install

Both front & rear maintenance options

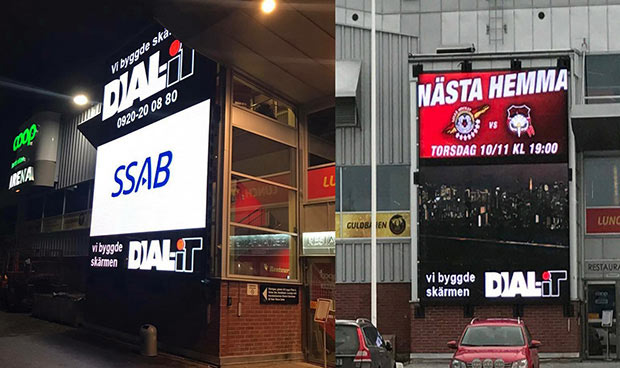

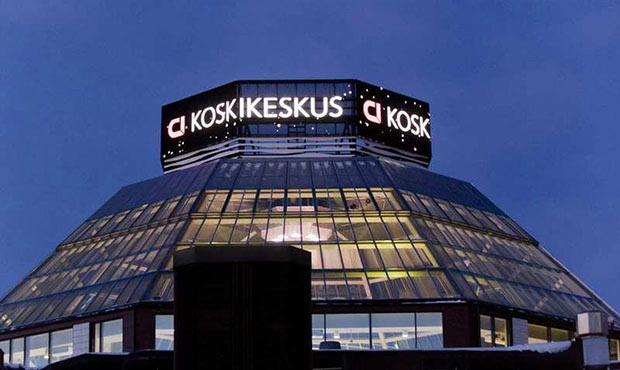

MC SERIES SHOWCASE
technical specification
MC7 MC15 MC15P MC31D
Pixel Pitch (mm) 7.81 15.625 15.6-31.2 31.25
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD DIP
Panel Size (WxH)/(mm) 500x1000 500x1000 500x1000 500x1000
Pixel Per Panel 64x128 32x64 16x64 16x32
Panel Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Panel Weight (kg) 9 7.5 6 7
Brightness (nit) >5500 >5500 >5500 >6500
Refresh Rate (Hz) >1920 >1920 >1920 >1920
Gray Scale (bit) 16 16 16 16
Viewing Angle (H/V) (°) 140/140 140/140 140/140 120/60
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 130/sqm 120/sqm 120/sqm 105/sqm
Max. Power Consumption (W) 450/sqm 400/sqm 400/sqm 350/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP67 IP67 IP67 IP67
LED Lifetime (H) 100000 100000 100000 100000
Maintenance Method Front or Rear Front or Rear Front or Rear Front or Rear
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
