MA SERIES

Versatile Outdoor Advertising LED Display Board

Specifications
Pixel Pitch (mm): 4 / 5 / 6.67 / 8 / 10
Brightness (nits): >6000
Refresh Rate(Hz): <3840
Application: Outdoor Advertising
Key Features
  • Top stability magnesium alloy panel
  • Wide pixel pitch range for option
  • Compatible with perimeter banner display
  • Excellent heat resistancy & clean appearance
  • High profile outdoor advertising display solution
MA SERIES
MA SERIES-2

Top Stability Magnesium Alloy Panel

Featuring magnesium alloy material with high precision CNC technology, Cinstar MA series outdoor advertising billboard screen is with better flatness, supreme heat dissipation, lighter weight and more outstanding waterproof levels than traditional steel panels. A reliable advertising billboard will greatly increase your business values.


Wide Pixel Pitch Range for Option

Pixel pitch ranges from 16mm to 4mm, no matter what screen size you are looking for, Cinstar MA series outdoor LED billboard can always ensure that your spectators can have a superb visual experience. More options is more possibilities!

MA SERIES-3

MA SERIES-4

Compatible with Perimeter Banner Display

Cinstar MA series LED billboard display can be served as perimeter banner display by adding soft cushion (protect players from injury) on top and foldable brackets (adjustable to get best visibility for spectators). The soft mask can protect athletes from scratches by collision and LEDs from ball punches.


Excellent Heat Resistancy & Clean Appearance

Each panel is installed 4 strong power fans to speed up the fresh air flow to take away the heat generated by power supplies and modules and maintain the best working temperature of LED display. All cables can be hidden inside the panels and cabling goes Left-to-right or Top-to-bottom. No any exposed cables, risk of cable problem and clean display appearance.

MA SERIES-5

MA SERIES-6

High Profile Outdoor Advertising Display Solution

Cinstar MA series is an ideal solution for high profile outdoor commercial advertising applications. Its top stability, superb visibility and extraordinary image performance make it the new icon for outdoor billboard advertising at airport, train station, bus station, shopping mall, stadium, telecommunications and other commercial purposes.

MA Series Features

Slim and light weight magnesium panel

Excellent heat dissipation and top stability

Wide pixel pitch for options

Compatible with perimeter banner design

Cost-effective LED outdoor billboard

Ideal outdoor advertising display solution

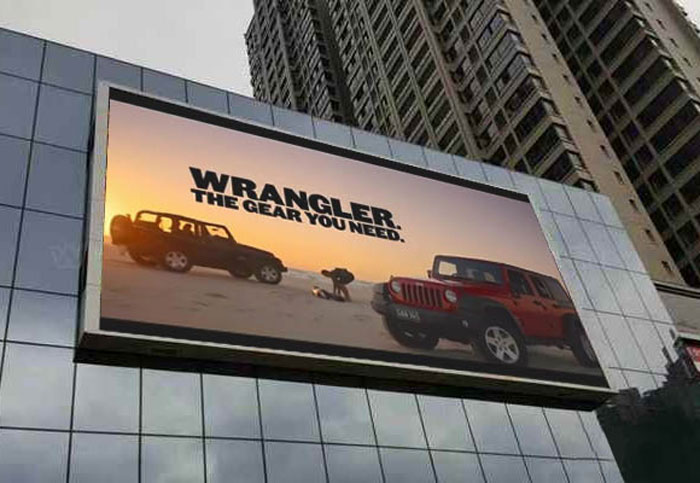

MA Series Showcase
Technical Specification
MA4 MA5 MA6 MA8 MA10
Pixel Pitch (mm) 4 5 6.67 8 10
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (WxH)/(mm) 320x160 320x160 320x160 320x160 320x160
Panel Size (WxH)/(mm) 960x960 960x960 960x960 960x960 960x960
Pixel Per Panel 240x240 192x192 144x144 120x120 96x96
Panel Material Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy
Brightness (nit) > 6500 > 6500 > 6500 > 6500 > 6500
Refresh Rate (Hz) > 1920 > 1920 > 1920 > 1920 > 1920
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 140/140 140/140 140/140 140/140 140/140
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP65 IP65 IP65 IP65 IP65
LED Lifetime (H) 100000 100000 100000 100000 100000
Maintenance Method Rear Rear Rear Rear Rear
