INNOX SERIES
High Profile Indoor Fixed LED Display Solutions
Specifications
Pixel Pitch (mm): 1.9 / 2.6 / 3.1 / 3.9 / 4.8
Brightness (nits): 800 - 1200
Refresh Rate(Hz): < 3840
Application: Indoor Fixed
Key Features
  • Ultra slim panel design, less than 45mm
  • 100% front installation and maintenance
  • Magnetic module for quick and convenient service
  • Multiple panel sizes create more possibilities
  • Customizable cube design and concave&convex curves
  • Ideal LED solution for high profile indoor advertising
INNOX SERIES
INNOX SERIES

Ultra Slim And Lightweight Panel

Featuring Die-casting aluminum panel frame with high precision CNC technology, the weight of each panel (1000x250mm) is only 6.3kg(13.8lb).

The panel depth is minimized to only 45mm, excellent for wall mounting installation.


Multiple Panel Sizes Configuration

Innox series are designed to cater to all possible indoor projects by providing a range of panel sizes for combinations. The panel sizes including 500x250mm, 750x250mm and 1000x250mm, which create much more options and possibilities to your projects.

INNOX SERIES

INNOX SERIES

Front Installation & Maintenance

Utilizing a vacuum service tool allows for quick and easy module swapping. In addition, all internal parts can be safely accessed and serviced from the front of the display. What's more, Innox series panels can be installed from front as wall mounted installaiton.


Curves And Cube Designs

Cinstar Innox series panels can be customized to any angle to meet concave or convex curves. Besides, it is possible to do right angle or cube designs. All makes it a perfect solution for indoor fixed installation.

INNOX SERIES

INNOX SERIES

Superb Visual Performance

Using the highest quality LED diodes, driver IC and masks for high refresh rate, super-high contrast and vivid colors, Cinstar Innox series display assures the best image production and superb visual experience. Which meets all your expectations on quality and performance.

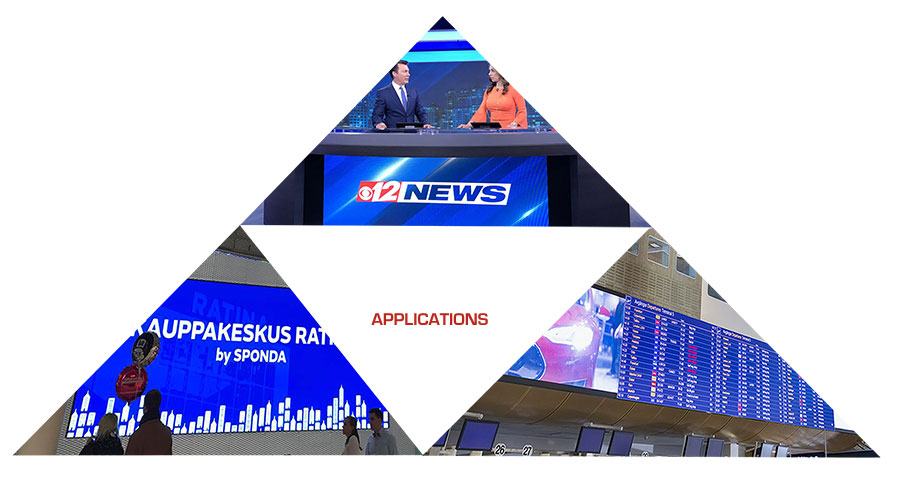

Wide Range Of Applications

Cinstar Innox series are widely applied at conference room, monitoring room, command center, TV studio, transportation center, shopping mall, hospitality etc to deliver stunning image quality for all walks of life.

INNOX SERIES
INNOX SERIES FEATURES

Ultra slim and lightweight panel

Fully front installation and maintenance

Magnetic module for quick service

Multiple panel sizes available

Customizable cube and curves design

Ideal LED solution for indoor advertising

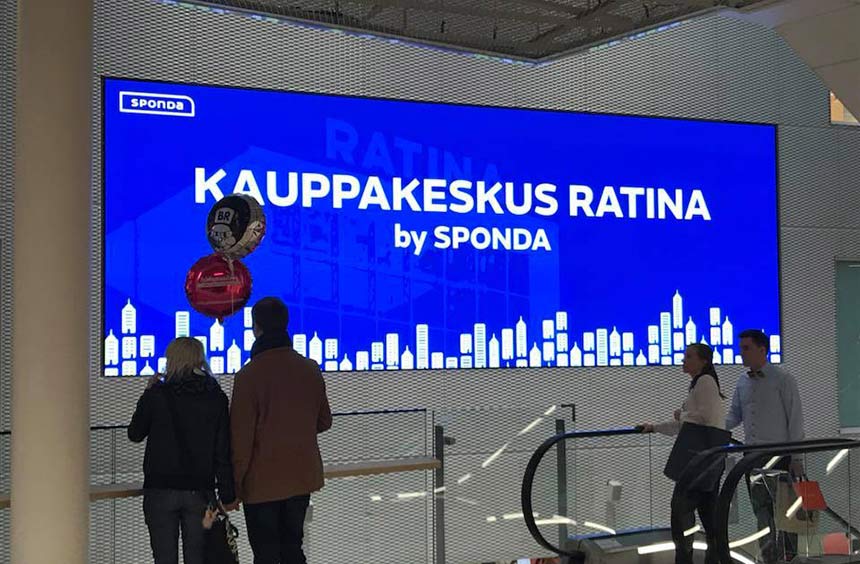

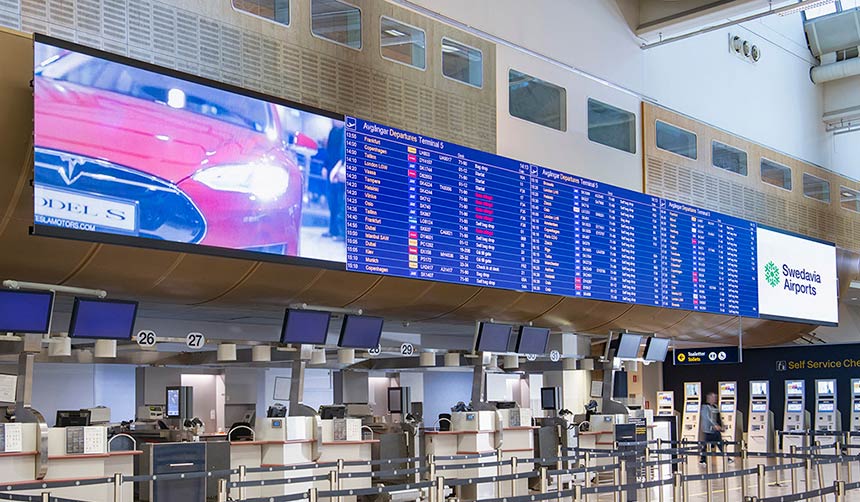

INNOX Series Showcase
Technical Specification
INNOX 1.9 INNOX 2.6 INNOX 3.1 INNOX 3.9 INNOX 4.8
Pixel Pitch (mm) 1.9 2.6 3.1 3.9 4.8
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Panel Size (WxH)/(mm) 1000x250 or Customized 1000x250 or Customized 1000x250 or Customized 1000x250 or Customized 1000x250 or Customized
Pixel Per Panel 520x130 384x96 320x80 256x64 208x52
Panel Material Aluminum Aluminum Aluminum Aluminum Aluminum
Panel Weight (kg) 6.3 6.3 6.3 6.3 6.3
Module Size (WxH)/(mm) 250x250 250x250 250x250 250x250 250x250
Brightness (nit) 800-1200 800-1200 800-1200 800-1200 800-1200
Refresh Rate (Hz) < 3840 < 3840 < 3840 < 3840 < 3840
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 160/160 160/160 160/160 160/160 160/160
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 70/sqm 70/sqm 70/sqm 70/sqm 70/sqm
Max. Power Consumption (W) 180/sqm 180/sqm 180/sqm 180/sqm 180/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢50 ﹣20~﹢50 ﹣20~﹢50 ﹣20~﹢50 ﹣20~﹢50
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21
LED Lifetime (H) 100000 100000 100000 100000 100000
Module Maintenance Front Front Front Front Front
PSU & Others Maintenance Front Front Front Front Front
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
