HD SERIES
High-Definition LED Video Display
Specifications
Pixel Pitch (mm): 1.25 / 1.56 / 1.87 / 2.3
Brightness (nits): up to 900
Refresh Rate(Hz): 2880-3840
Application: Indoor Fixed
Key Features
  • Super slim design, thickness less than 38mm
  • Extremely light weight, each panel less than 11lbs
  • User friendly front installation and maintenance
  • Convectional cooling design, fans free operation
  • Jumper cable free connecton, concise appearance
  • Versatile installation, hanging or ground stacking
HD SERIES
HD SERIES

Ultra High Definition LED Video Display

Cinstar HD series LED video display offers the current finest pixel pitch LED screen display solutions for the most direct-view applications where a narrow pixel pitch LED video screen is needed in a fixed installation environment such as TV broadcasting studios, traffic control rooms, boardrooms etc. Pixel pith available from 0.9mm to 2.3mm

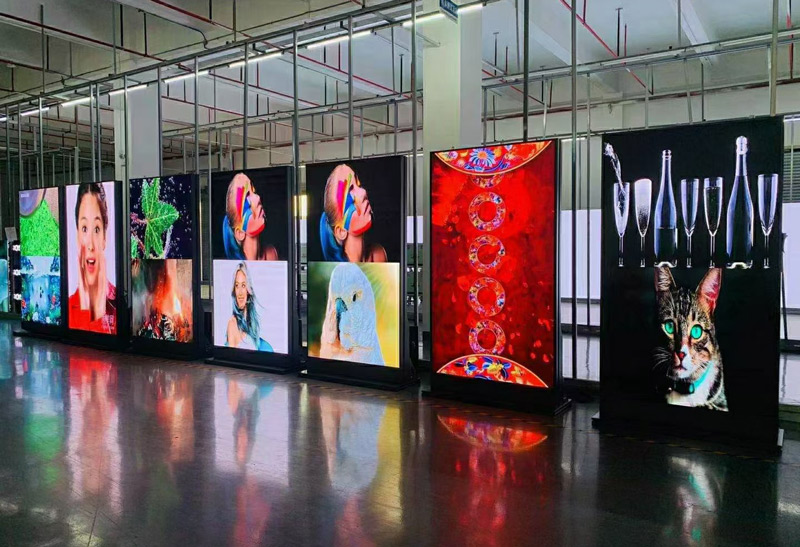

Versatile Installation Solutions

Cinstar HD Series LED video display optimizes all the possible installations including wall mounting, hanging or ground supporting. It can be a giant video wall to control room, UHD TV to home cinema or smart poster screen for commercial advertising. Both front or rear service is optional and can be customized for specific projects.

HD SERIES

HD SERIES

Concise And Clean Appearance

Cinstar HD Series LED video display applies innovative jumper cable free connection, ensuring super clean rear appearance and great visual enjoyment. No jumper cable design makes an easier installation work on site and secures better stability and lower failure rate.


Exceptional Visual Experience

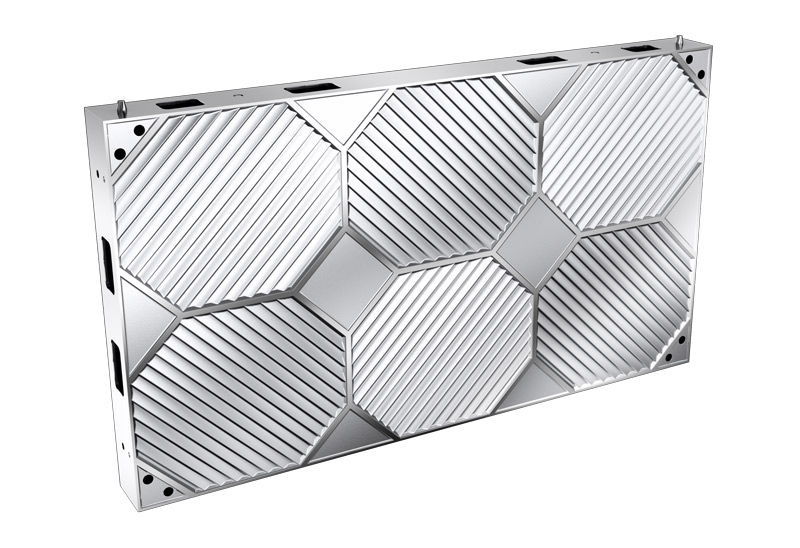

The sleek and seamless high definition LED video display is capable of delivering an optimal visual performance with high refresh rate, excellent greyscale levels, high contrast ratio and wide color gamut. The ultra-high precision CNC die-casting aluminum panel allowing excellent heat dissipation for enhanced power efficiency and silent performance.

HD SERIES
HD Series Features

Superb visual performance

High contrast and wide colour gamut

Versatile installation solutions

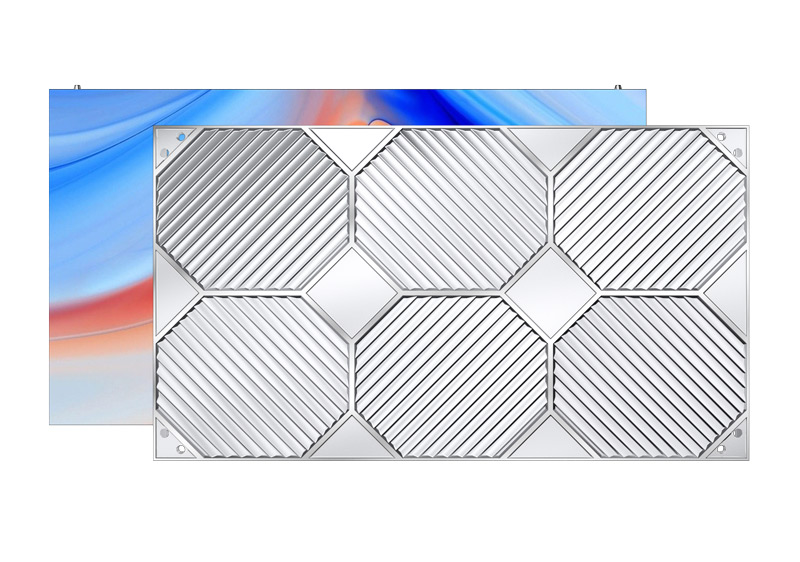

Super slim light weight panel

Both front and rear maintenance options

Convection cooled, no fans on board

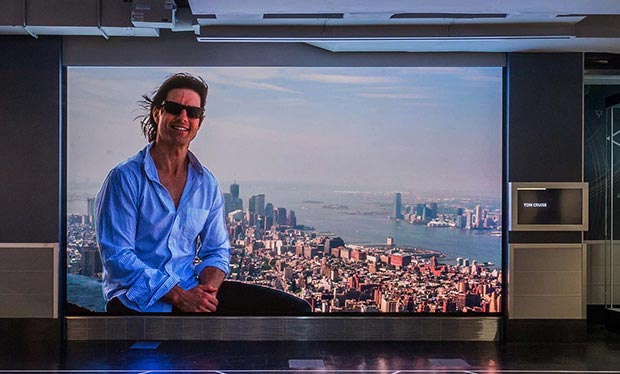

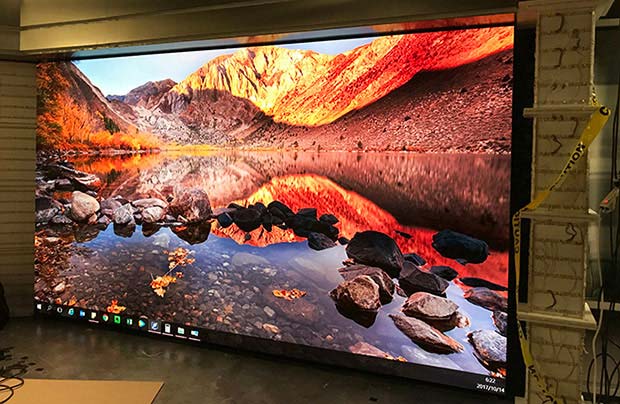

HD Series Showcase
Technical Specification
HD1.25 HD1.56 HD1.87 HD2.3
Pixel Pitch (mm) 1.25 1.56 1.87 2.3
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Panel Size (WxH)/(mm) 600x337.5 600x337.5 600x337.5 600x337.5
Pixel Per Panel 480x270 384x216 320x180 256x144
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (kg) 5 5 5 5
Module Size (WxH)/(mm) 150x168.75 150x168.75 150x168.75 150x168.75
Brightness (nit) 600 700 800 900
Refresh Rate (Hz) 2880-3840 2880-3840 2880-3840 2880-3840
Gray Scale (bit) 16 16 16 16
Viewing Angle (H/V) (°) 160/160 160/160 160/160 160/160
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 225/sqm 225/sqm 225/sqm 225/sqm
Max. Power Consumption (W) 675/sqm 675/sqm 675/sqm 675/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21
LED Lifetime (H) 100000 100000 100000 100000
Module Maintenance Front Front Front Front
PSU & Others Maintenance Front Front Front Front
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
