FT SERIES

DOOH Advertising LED Video Display Specialist

Specifications
Pixel Pitch (mm): 4.81 / 5.95 / 6.67 / 8 / 10
Brightness (nits): up to 7500
Refresh Rate(Hz): >1920
Application: Outdoor Fixed
Key Features
  • Specially designed for branding & digital advertising
  • Built to withstand severe weather conditions
  • Excellent brightness & contrast levels
  • Wide viewing angles
  • Easy front or rear service access for options
  • Advanced monitoring & reporting system – Optional
FT SERIES
FT SERIES

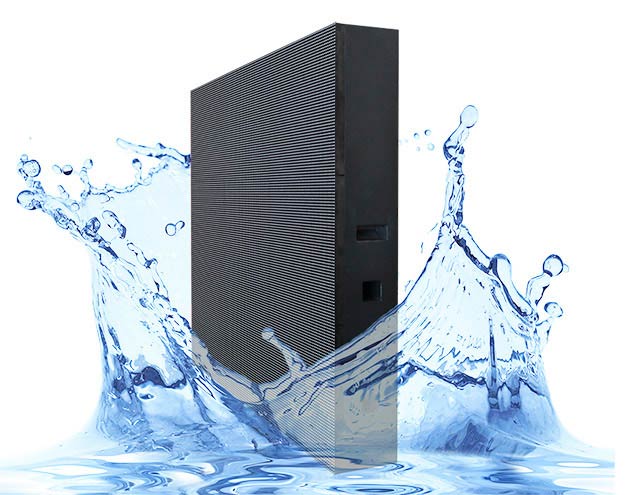

Great Durability And Stability

Cinstar FT series LED video display was developed specifically for commercial billboards and outdoor digital advertising markets.

Designed for fixed outdoor installations, FT series LED video panels are robust and durable, high qualified to withstand any harsh environment factors such as constant vibrations, direct UV rays, varying temperatures and severe weather conditions. The FT series LED systems are suitable for 24/7 operation.

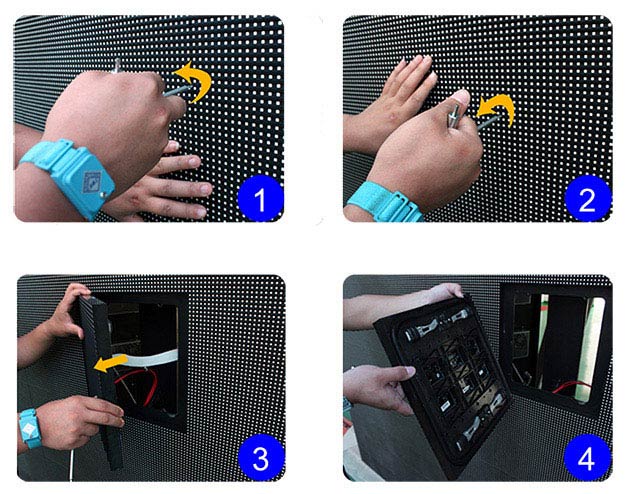

Front And Rear Maintenance For Options

Cinstar FT series LED video display supports front or rear service access for specific installation. The fully front installation and maintenance panel design easier your installation procedures and much convenient to maintain. It is the perfect choice for against the wall installation or any other environment where requires no rear maintenance space.

FT SERIES

FT SERIES

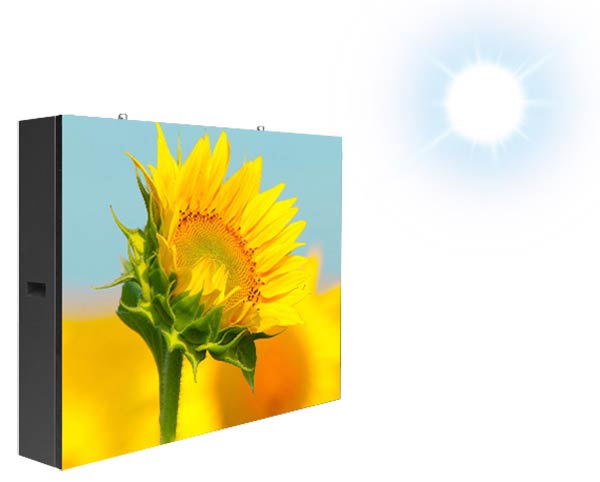

High Brightness With Wide Viewing Angle

Cinstar FT series LED video display equipped with high brightness LEDs (DIP or SMD for options) to make sure the screen displaying vivid and clear image even in direct sunlight. The wide viewing angle catches more eyes on the screen and deliver brilliant visual enjoyment to the passing-bys, greatly maximize the commercial value.

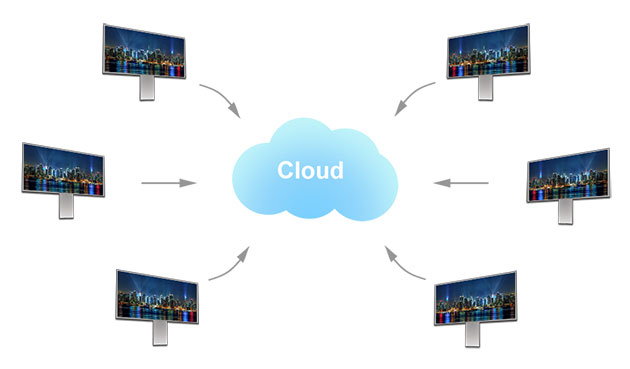

Advanced Monitoring And Reporting System

The advanced reporting system allows clients to remotely monitor the performance of the entire LED display and individual panels live from any destination. It detects any inconsistencies and failures and feedback the results in real time when they occur.

FT SERIES
FT Series Features

Designed for branding & digital advertising

Built to withstand severe weather conditions

Excellent brightness & contrast levels

Wide viewing angles

Easy front or rear service access for options

Advanced monitoring & reporting system

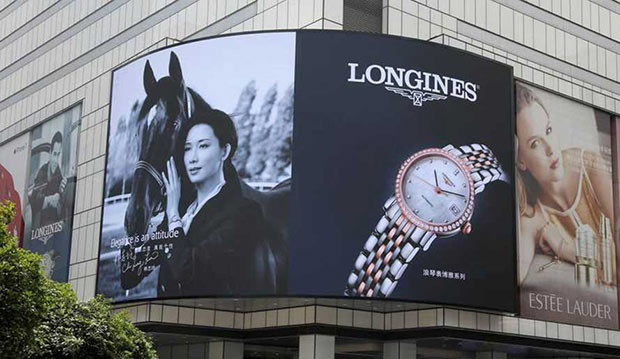

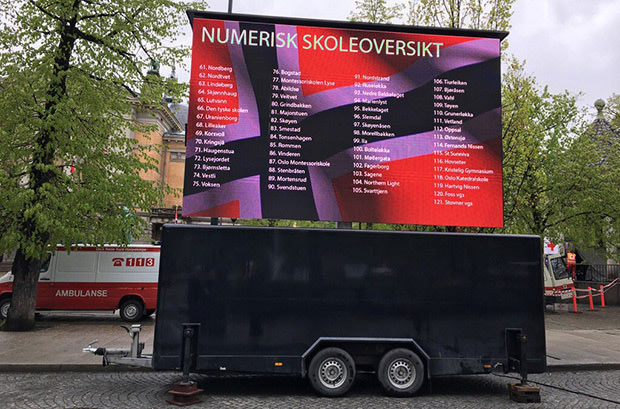

FT Series Showcase
Technical Specification
FT4.8 FT5.9 FT6.67 FT8 FT10
Pixel Pitch (mm) 4.81 5.95 6.67 8 10
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Panel Size (WxH)/(mm) 750x750 or Customized 750x750 or Customized 960x960 or Customized 960x960 or Customized 960x960 or Customized
Pixel Per Panel 156x156 126x126 144x144 120x120 96x96
Panel Material Steel or Aluminum Steel or Aluminum Steel or Aluminum Steel or Aluminum Steel or Aluminum
Panel Weight (kg) 40 40 54 54 54
Module Size (WxH)/(mm) 250x250 250x250 320x320 320x320 320x320
Brightness (nit) >5000 >5000 >5000 >5000 >5000
Refresh Rate (Hz) >1920 >1920 >1920 >1920 >1920
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 140/120 140/120 140/120 140/120 140/120
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 240/sqm 243/sqm 243/sqm 256/sqm 226/sqm
Max. Power Consumption (W) 810/sqm 826/sqm 729/sqm 768/sqm 679/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54
LED Lifetime (H) 100000 100000 100000 100000 100000
Module Maintenance Front or Rear Front or Rear Front or Rear Front or Rear Front or Rear
PSU & Others Maintenance Front or Rear Front or Rear Front or Rear Front or Rear Front or Rear
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
