FL SERIES

Creative LED Video Screen Solution

Specifications
Pixel Pitch (mm): 2 / 2.5 / 3 / 4 / 5
Brightness (nits): up to 1500
Refresh Rate(Hz): 1920-3840
Application: Creative Installation
Key Features
  • Soft module with great flexibility
  • Wide range of pixel pitch for options
  • Creative design delivers your ideas
  • Can do beyond your imagination
  • High commercial values
FL SERIES
FL SERIES

Creative Design Delivers Your Ideas

Cinstar FL series soft module solution can get rid of the limit of panel to create more possibilities for the architect or designer to fullfill their creative ideas with corresponding steel structure.


Can Do Beyond Your Imagination

Cinstar FL series creative LED display solution is flexible to make any creative designs, which is ideal for the installation at art gallery, science museum and theme park etc.

FL SERIES

FL SERIES

High Commercial Values

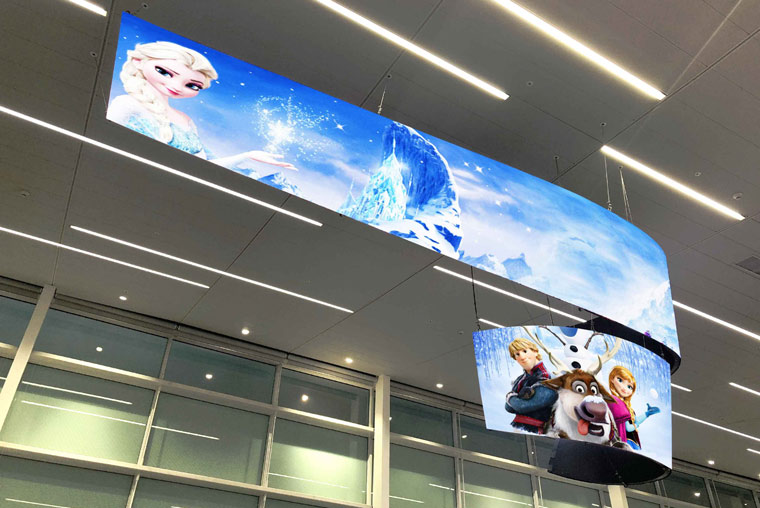

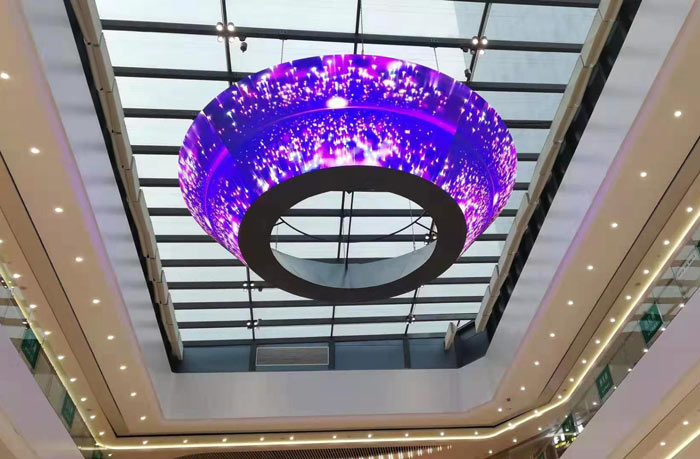

Cinstar FL series soft module solution can be widely applied to build a super smooth cylinder LED video screen at rail station, metro station, bus station and shopping centers for eye-catching advertising. High traffic and 360 degree advertising will greatly increase its business value.

FL SERIES Features

Soft and flexible magnetic modules

Wide range of pixel pitches

Ultra-wide viewing angle

Creative design delivers your ideas

Can do beyond your imagination

High commercial values

FL SERIES Showcase
Technical Specification
FL1.8 FL2 FL2.5 FL3 FL5 FL6
Pixel Pitch (mm) 1.875 2 2.5 3 5 6
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (mm) 240x120 256x128 240x120 240x120 320x160 192x192
Module Resolution 128x64 128x64 96x48 80x40 64x32 32x32
Scan Mode 1/32 1/32 1/24 1/20 1/16 1/8
Brightness (nit) > 700 > 700 > 1000 > 1000 > 1000 > 1000
Refresh Rate (Hz) 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Gray Scale (bit) 16 16 16 16 16 16
Viewing Angle (H/V) (°) 140 /140 140 /140 140 /140 140 /140 140 /140 140 /140
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP22 IP22 IP22 IP22 IP22 IP22
LED Lifetime (H) 100000 100000 100000 100000 100000 100000

Wanna Upgrade Your Next Projects?
