EC SERIES
Edge-Cutting Practical Rental LED Video Screen
EC SERIES

EC Series

EASY
FAST
ROBUST
CREATIVE
VERSATILE
EC SERIES

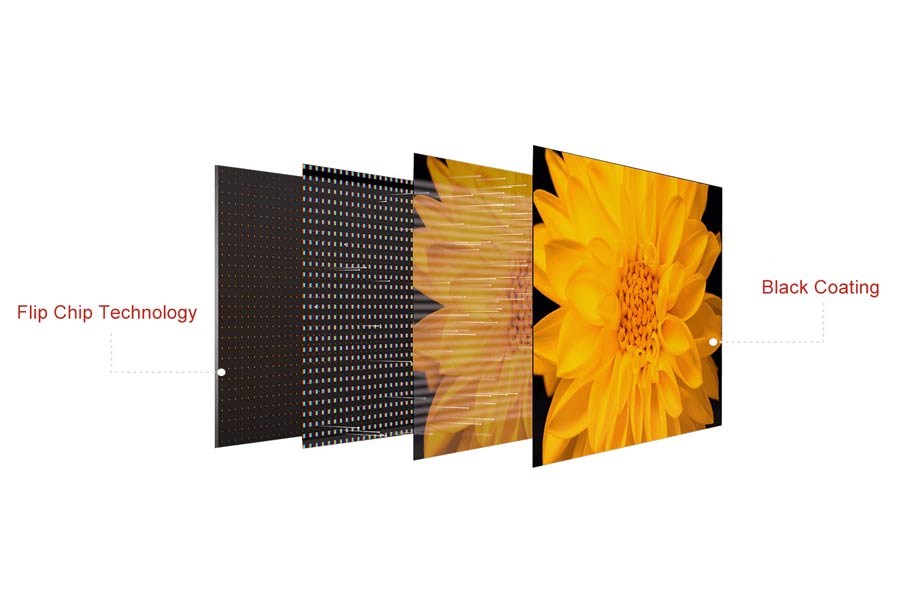

Optimized PCB Board

Cinstar EC series LED video screen panel adopts 4 layers CE/EMC certified PCB board to ensure the perfect heat dissipation and supreme stability. The PCB supports calibration data storage and highly matched with Nova controlling system.


High Stability Module

Featuring 10 strong magnets and location pins on each module, Cinstar EC series LED video screen could withstand transportation vibration and support ceiling installation. The firm module handle makes the maintenance easier and safer. In addition, the module could be installed at any position of the panel. No need much spare modules.

EC SERIES

EC SERIES

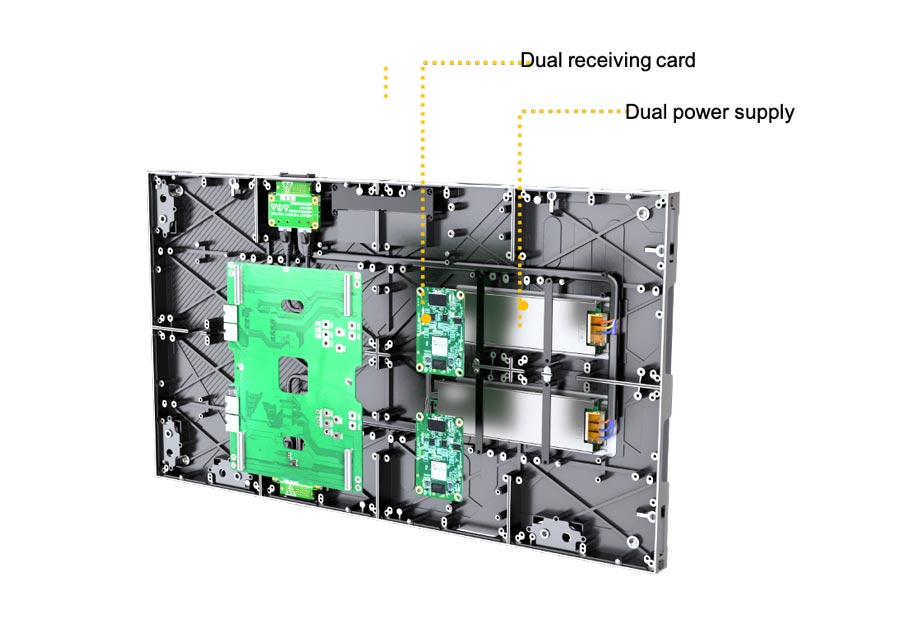

Practical Integrated Control Unit

EC series control unit is universal to all the pixel pitches and supports quick removable without tools. The big size indicator lamps are placed inclined to provide a better viewing angle for working status checking, very helpful especially for a giant video wall. The hidden test button could avoid false touch.


Modular Design With Optimal Compatibility

Cinstar EC series LED video screen is specially designed to cater to rental events market. The modular design enables fast replacement whenever a failure occurred. Besides, all the EC series models share the same panel frame and control unit. If both indoor and outdoor models needed, just buy the different pitch modules if you like, then your return on investment will be greatly maximized.

EC SERIES

EC SERIES

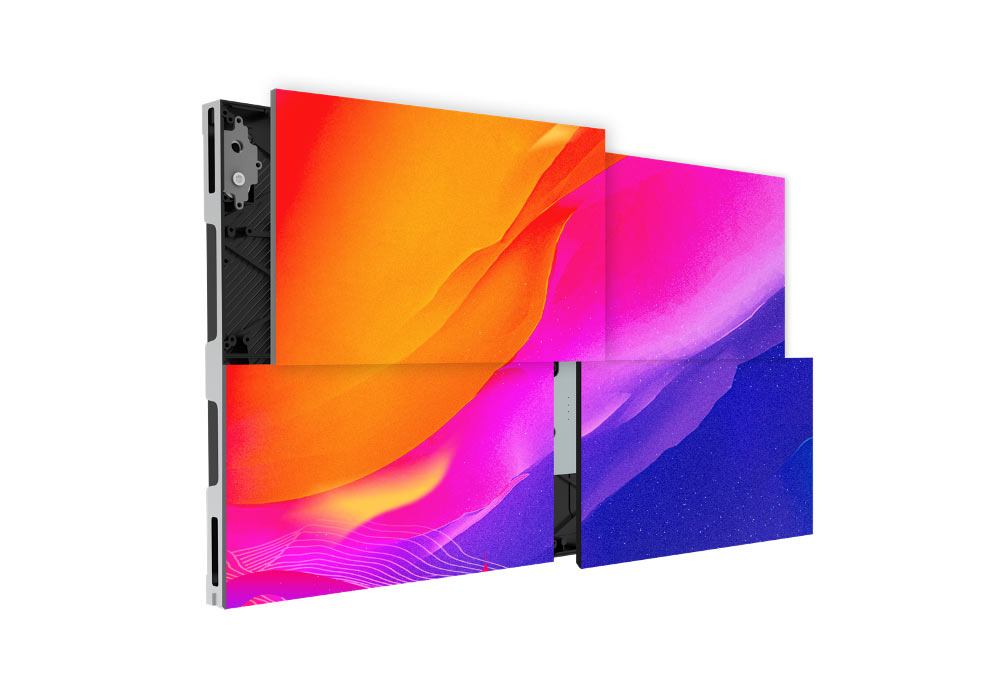

Fully Front or Rear Maintenance

Cinstar EC series LED display module can be with magnetic front access or screwed behind for rear service. The control unit could also be maintained from front or rear. It is ideal for any kind of rental events or productions.


Unique Handle Enables One Man Installation

Featuring the light weight panel (7-8kg/panel), Cinstar EC series LED video screen enables one-man installation with the help of top handle and the unique auto-locking system. Which gonna save you a lot of time and labor cost. The big ergonomic handle is covered with rubber, comfortable to hold and could avoid any damage to your knuckles.

EC SERIES

EC SERIES

Detailed User-Friendly Design

Cinstar EC series LED video screen pays much attention to user experience, the whole panel frame and control unit are chamfered carefully to leave no any sharp edges and avoid injury to customers. Besides, the panel is with in-built feet and edge protector to prevent physical damages.

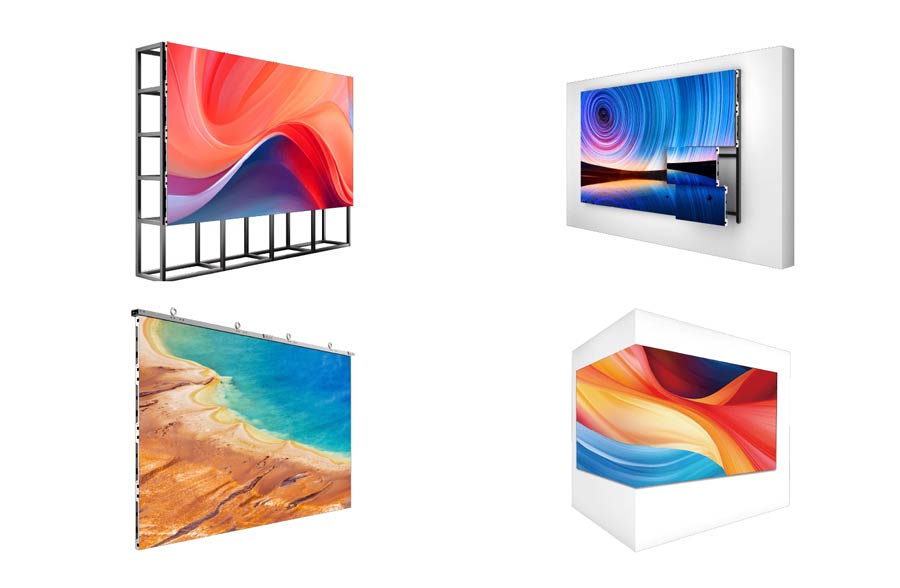

Universal Bracket For Multiple Application

Cinstar EC series LED video screen applies universal brackets for both ground stacking or suspension applications. Save your unnecessary cost.

EC SERIES

EC SERIES

Versatile Creative Installation

Cinstar EC series LED video screen is so versatile that it could be used as flat LED display, right angle, concave or convex installation. What's more, it supports dislocation installation to achieve special shape and creative effect.

INSTALLATION VIDEOS
Front Maintenance Video
Rear Maintenance Video
One-man Installation Video
EC Series Features

High standard PCB board and module

Truly modular panel design and high compatibility

Fully front or rear access service available

Ergonomic handle easier for one-man installation

Well-chamfered panel ensures safer operation

Versatile panel with multiple creative applications

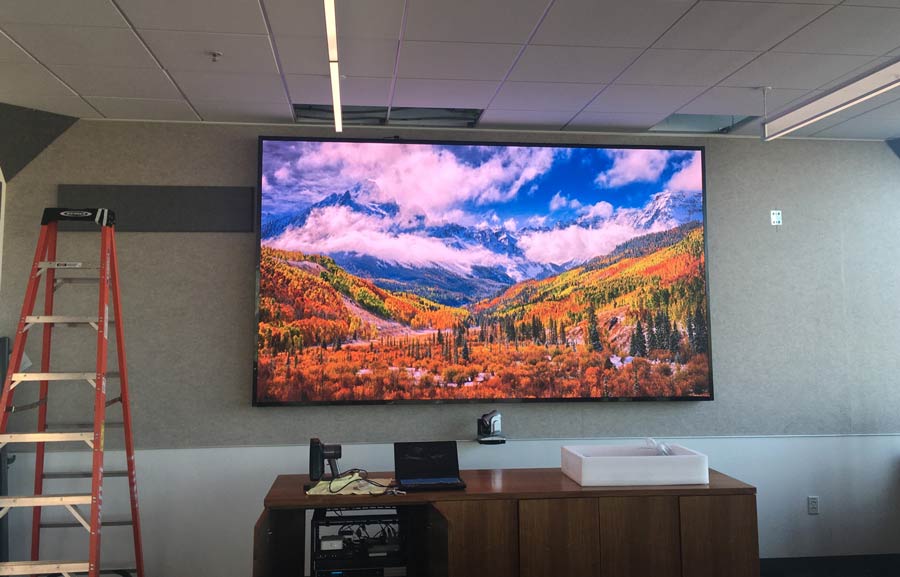

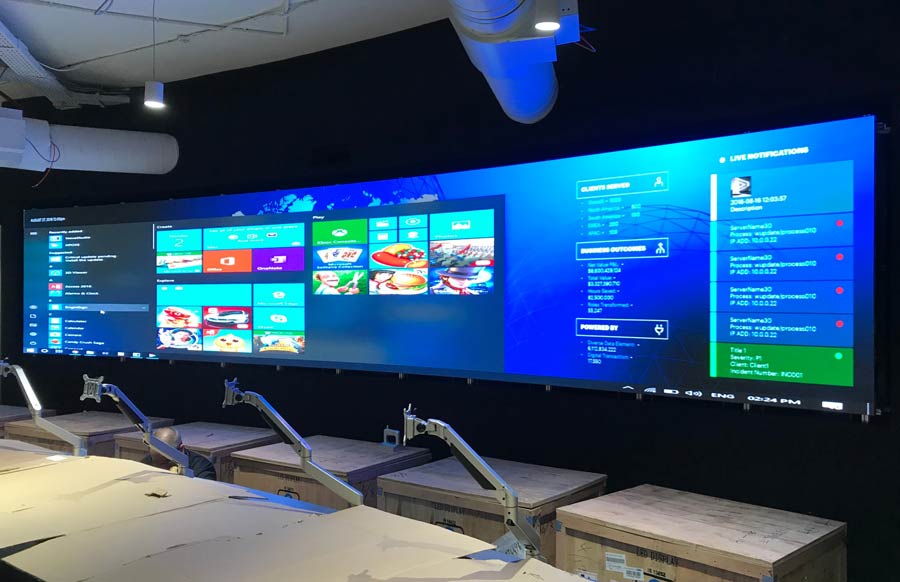

EC Series Showcase
Technical Specification
EC2.9 EC3.9 EC3.9(Outdoor) EC4.8(Outdoor)
Pixel Pitch (mm) 2.97 3.91 3.91 4.81
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Panel Size (WxH)/(mm) 500x500 500x500 500x500 500x500
Pixel Per Panel 168x168 128x128 128x128 104x104
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (kg) 7.3 7.3 7.8 7.8
Module Size (WxH)/(mm) 250x250 250x250 250x250 250x250
Brightness (nit) 1200 1200 5000 5000
Refresh Rate (Hz) >1920 >1920 >1920 >1920
Gray Scale (bit) 16 16 16 16
Viewing Angle (H/V) (°) 160/140 160/140 160/140 160/140
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 200/sqm 200/sqm 220/sqm 220/sqm
Max. Power Consumption (W) 600/sqm 600/sqm 660/sqm 660/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP65/IP54 IP65/IP54
LED Lifetime (H) 100000 100000 100000 100000
Module Maintenance Front/Rear Front/Rear Front/Rear Front/Rear
PSU & Others Maintenance Front/Rear Front/Rear Front/Rear Front/Rear
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
