D SERIES
Interactive LED Dance Floor Solution
Specifications
Pixel Pitch (mm): 2.9 / 3.9 / 4.8 / 5.2 / 6.25
Brightness (nits): up to 5500
Refresh Rate(Hz): 1920-3840
Application: Indoor & Outdoor LED Dance Floor
Key Features
  • Two panel sizes for option
  • Wide range of pixel pitches
  • Budget and high profile solutions
  • Excellent load-bearing performance
  • Durable module mask for skid resistance
  • Smart interactive LED floor screen
D SERIES
D SERIES

500x500mm & 500x1000mm Panels For Option

Cinstar D series interactive LED dance floor screen has two panel sizes for your choose. You can greatly save budget with 500x1000mm and can do any desired sizes by applying extra 500x500mm panels.


Available Budget And High Profile Solutions

Cinstar D series creative LED dance floor screen offers wide range of options for your projects from high profile to budget ones with varied specifications of steel or die-cast aluminum panel, Radar interactive or smart interactive with built-in IC. We are capable of supplying a turn key solution for your projects.

D SERIES

D SERIES

Excellent Load-Bearing Performance

Featured with robust panel frame, point-to-face contact and support technology, the weight capacity of Cinstar D series LED dance floor is more than 3000kg/sqm, which makes it a reliable floor video solution for stage events, TV studio and Car show etc.


Durable Module Mask For Skid Resistance

Cinstar D series LED floor screen adopts special high quality durable module mask to make sure the screen surface is non-slip for people to walk and dancing on it. Its great durability can also protect the LEDs from damage.

D SERIES
D SERIES Features

Two panel sizes for option

Wide range of pixel pitches

Budget and high profile solutions

Excellent load-bearing performance

Durable module mask for skid resistance

Smart interactive LED floor screen

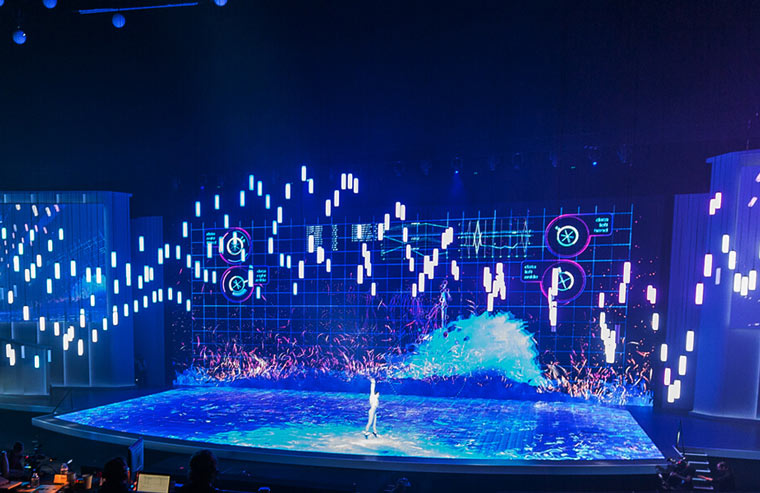

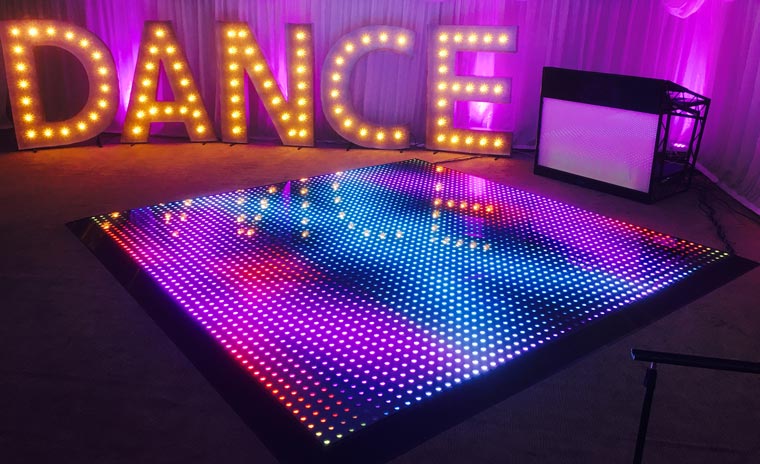

D SERIES Showcase
Technical Specification
D2.9 D3.9 D4.8 D6.2 D3.9 (Outdoor) D5.2 (Outdoor) D6.2 (Outdoor)
Pixel Pitch (mm) 2.97 3.91 4.81 6.25 3.91 5.2 6.25
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (mm) 250x250 250x250 250x250 250x250 250x250 250x250 250x250
Panel Size (WxH)/(mm) 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000
Pixel Per Panel 168x168 / 168x336 128x128 / 128x256 104x104 / 104x208 80x80 / 80x160 128x128 / 128x256 96x96 / 96x192 80x80 / 80x160
Panel Material Steel / Die-cast Aluminum Steel / Die-cast Aluminum Steel / Die-cast Aluminum Steel / Die-cast Aluminum Steel / Die-cast Aluminum Steel / Die-cast Aluminum Steel / Die-cast Aluminum
Brightness (nit) > 1000 > 1000 > 1000 > 1000 > 5500 > 5500 > 5500
Refresh Rate (Hz) < 3840 < 3840 < 3840 < 3840 < 3840 < 3840 < 3840
Gray Scale (bit) 16 16 16 16 16 16 16
Viewing Angle (H/V) (°) 140/140 140/140 140/140 140 /140 140/140 140/140 140 /140
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP22 IP22 IP22 IP22 IP65 IP65 IP65
LED Lifetime (H) 100000 100000 100000 100000 100000 100000 100000
