CR SERIES

Creative Solution LED Displays

Specifications
Pixel Pitch (mm): 2.6 / 2.9 / 3.9 / 4.8
Brightness (nits): up to 5500
Refresh Rate(Hz): 1920-3840
Application: Fixed/Rental

Key Features

  • Fast locking system for quick and easy assembly
  • Robust panel frame and durable giant top locks
  • Separate and exchangeable power and control unit
  • Indoor and outdoor options, front or rear maintenance

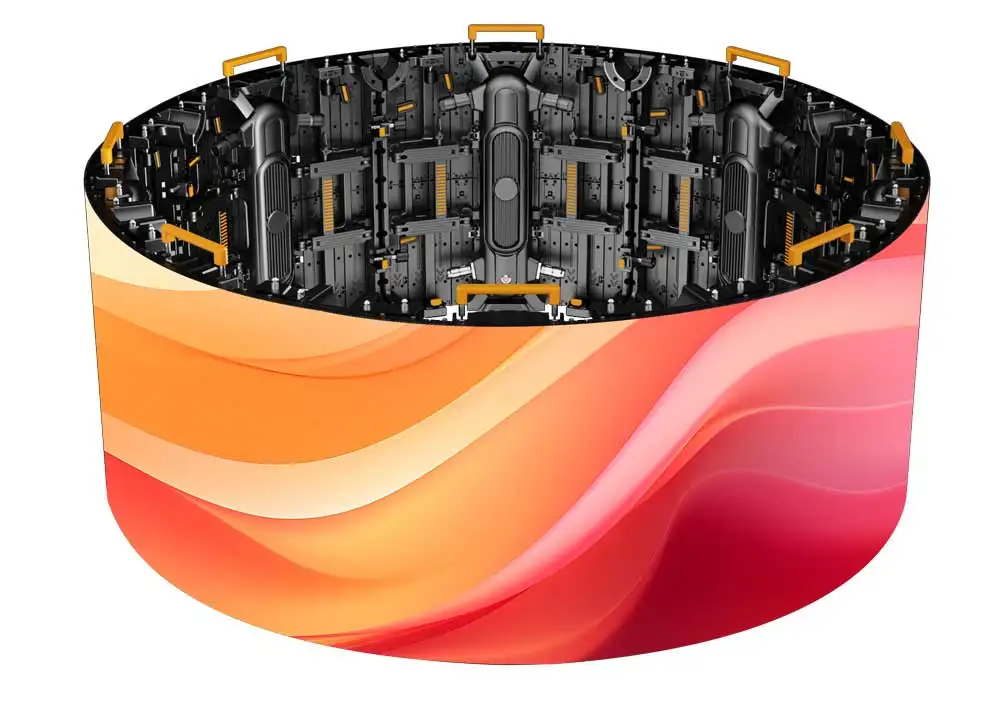

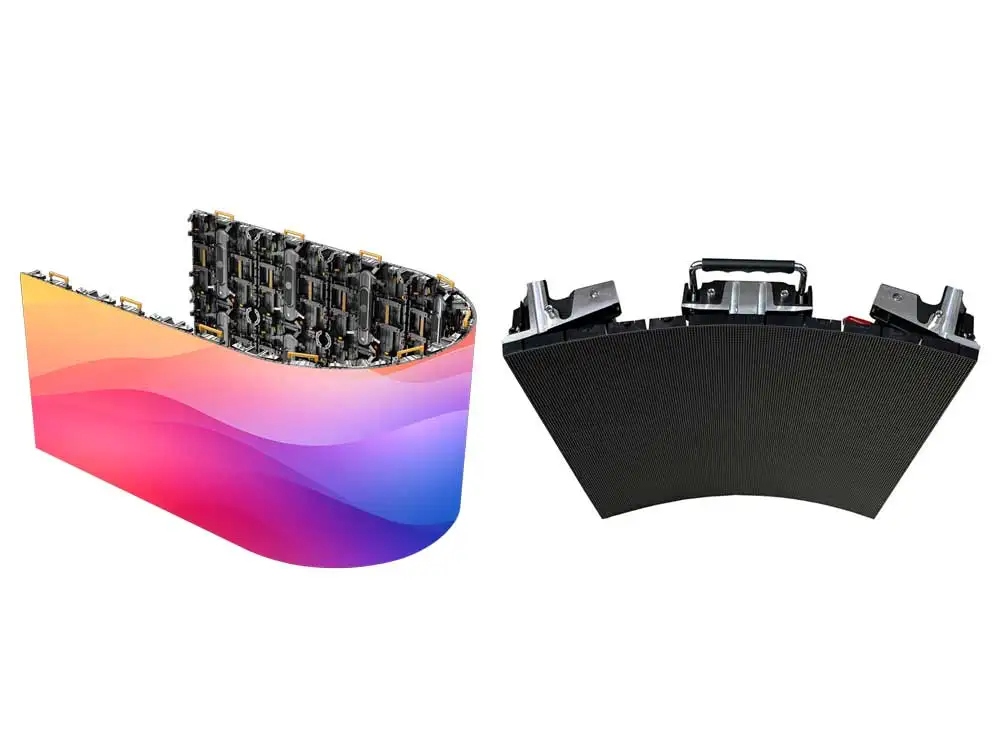

  • Designed to create convex and concave curved setup
  • Seamless image quality, superb visual performance

CREATIVE RENTAL SOLUTIONS

Cinstar CR series offers advanced, high-performance rental panels for indoor and outdoor applications.

Designed specifically for touring & rental markets, the panels are lightweight and slim but durable, equipped with user-friendly features like ergonomic handles for convenient handling and operation, fast build-up and easy alignment.

The giant robust top lock allows suspension more than 10m and enables one-man installation which lower operation cost.

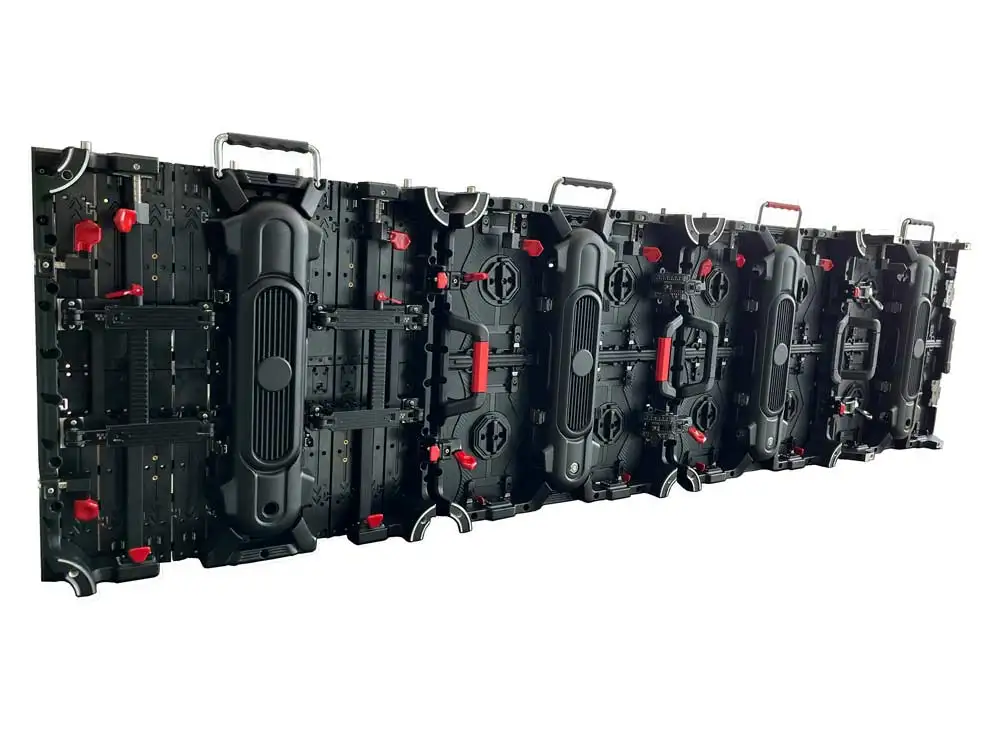

Featuring integrated control unit and magnetic module front service simplify the maintenance and servicing for specific projects.

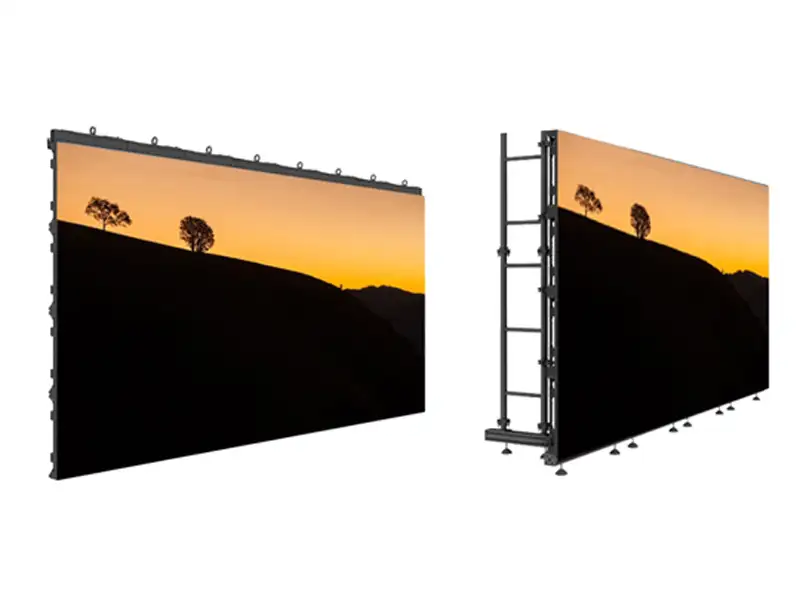

The versatile CR Series is capable of hanging, ground stacking or curved installations. One for all solution maximizes your ROI.

CR SERIES FEATURES

Fast locking system for rapid construction

Robust panel frame and durable giant locks

Separate and exchangeable power and control unit

Indoor and outdoor models available

Hanging, ground stacking or curved installations

Seamless image quality, superb visual performance

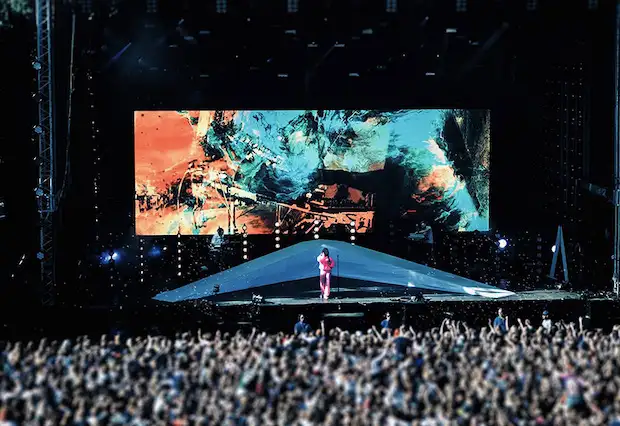

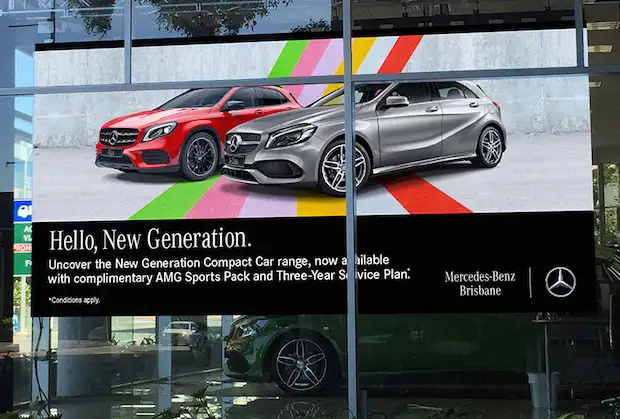

CR SERIES SHOWCASE
technical specification
CR2.6 CR2.9 CR3.9 CR3.9(Outdoor) CR4.8(Outdoor)
Pixel Pitch (mm) 2.6 2.97 3.91 3.91 4.81
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Panel Size (WxH)/(mm) 500x500 500x500 500x500 500x500 500x500
Pixel Per Panel 192x192 168x168 128x128 128x128 104x104
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (kg) 7.6 7.6 7.6 8.7 8.7
Module Size (WxH)/(mm) 250x250 250x250 250x250 250x250 250x250
Brightness (nit) 1000 1200 1200 5000 5000
Refresh Rate (Hz) >1920 >1920 >1920 >1920 >1920
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 160/140 160/140 160/140 160/140 160/140
AC Operating Voltage (V) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%) 110~220 (±5%)
Avg. Power Consumption (W) 240/sqm 210/sqm 218/sqm 236/sqm 243/sqm
Max. Power Consumption (W) 720/sqm 630/sqm 654/sqm 708/sqm 729/sqm
Storage Temperature (℃) ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60 ﹣40~﹢60
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP65/IP54 IP65/IP54
LED Lifetime (H) 100000 100000 100000 100000 100000
Module Maintenance Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
PSU & Others Maintenance Rear Rear Rear Rear Rear
Certificate CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS CE FCC ETL RoHS
