BT SERIES
High Profile Outdoor Sport Arena Advertising Solution
Specifications
Pixel Pitch (mm): 4 / 5 / 6.67 / 8 / 10
Brightness (nits): >6500
Refresh Rate(Hz): <3840
Application: Sports Arena Advertising
Key Features
  • High profile LED perimeter banner solution
  • Top stability & durability perimeter system
  • Double safety protection to players
  • Adjustable supporting brackets
  • High protective grade IP65
  • Multifunction for sports events
BT SERIES
BT SERIES

High Profile LED Perimeter Banner Solution

Cinstar BT series stadium LED banner system is featured with ultra-light and slim magnesium panel and fast locks for easy installation and transportation. Super High refresh rate 3840Hz and excellent gray scale 16bit ensuring the superb image production.


Top Stability & Durability Perimeter System

Cinstar BT series stadium perimeter banner system is featured with high level IP rating and supreme cooling design to guarantee the best reliability and performance. All the quality components and user friendly design enable it the best solution to maximize your ROI.

BT SERIES

BT SERIES

Double Safety Protection To Players

Cinstar BT series perimeter banner system is equipped with soft rubber module mask and soft cushion on top of panel to protect players from scratch and injury when collision to the LED system by accident. What is more, the soft rubber mask can effectively protect the LEDs from ball punching and maintain its stable operation.


Adjustable Supporting Brackets

Cinstar BT series outdoor stadium perimeter banner system adopted flexible supporting brackets which can be adjusted to different lean angles to meet the best shooting angle for cameras and spectators. Which helps to maximize its business value and brings more advertising revenue.

BT SERIES

BT SERIES

High Protective Grade IP65

Cinstar BT series outdoor stadium LED display adopts high quality conformal coating to make sure all the electronic components are effectively moisture-proof and dust-proof. The high protection level IP65 makes the system working perfectly for any weather conditions, indoor or outdoor.


Multifunction For Sports Events

Except used as perimeter banner system, Cinstar BT series sports arena LED system can be installed as scoreboards, live feed video screen or served as advertising billboard by folding up the bracket and get rid of the panel top cushion. It is an ideal video solution for stadium, sport arena and horse racing etc.

BT SERIES
BT SERIES Features

High profile LED banner solution

Top stability & durability perimeter system

Safety protection to players

Adjustable supporting brackets

High protective grade IP65

Multifunction for sports events

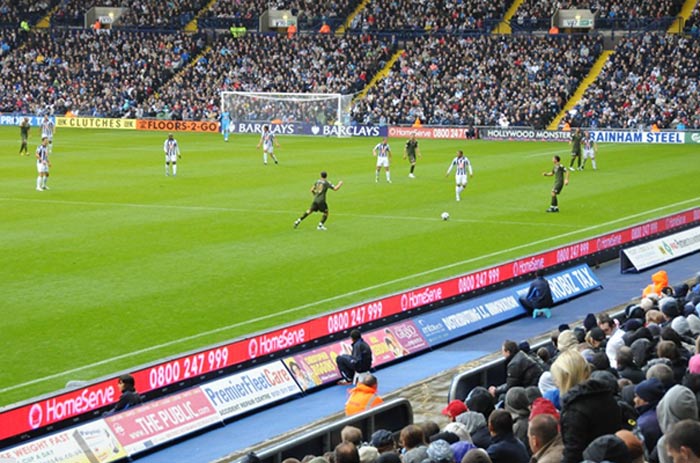

BT SERIES Showcase
Technical Specification
BT4 BT5 BT6 BT8 BT10
Pixel Pitch (mm) 4 5 6.67 8 10
LED Type 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Module Size (WxH)/(mm) 320x160 320x160 320x160 320x160 320x160
Panel Size (WxH)/(mm) 960x960 960x960 960x960 960x960 960x960
Pixel Per Panel 240x240 192x192 144x144 120x120 96x96
Panel Material Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy
Brightness (nit) > 6500 > 6500 > 6500 > 6500 > 6500
Refresh Rate (Hz) >1920 >1920 >1920 >1920 >1920
Gray Scale (bit) 16 16 16 16 16
Viewing Angle (H/V) (°) 140/140 140/140 140/140 140/140 140/140
Operating Temperature (℃) ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60 ﹣20~﹢60
IP Rating (Front/Rear) IP65 IP65 IP65 IP65 IP65
LED Lifetime (H) 100000 100000 100000 100000 100000
Maintenance Method Rear Rear Rear Rear Rear
