How to Decide on the Ideal Pixel Pitch for LED Walls

September 26, 2025

When installing an LED wall rental or purchasing a Direct View LED Video Wall, one of the first things that comes to mind is pixel pitch. At first glance, it is just another technical aspect, but it determines how clear the screen appears, how expensive it is, and where it will excel.

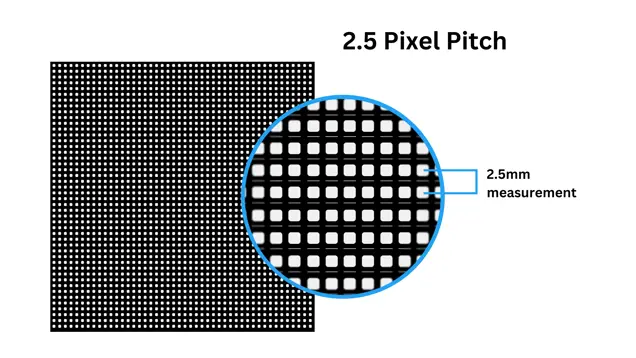

Pixel pitch is defined as the distance in millimeters between the centers of two adjacent LED clusters. When the pixel pitch is smaller, the LED clusters are closer together. This results in a higher resolution. If the pixel pitch is larger, the LED clusters are farther apart. It results in lower resolution. However, in many cases, this also leads to a lower overall cost. Let's explore how to determine the ideal pixel pitch for LED Screens.

Why Pixel Pitch Matters

Pixel pitch matters for three main reasons:

Viewing quality: A tighter pitch provides higher detail and smoother visuals, particularly apparent when individuals are standing up close.
Viewing distance: A tighter pitch provides greater detail and smoother visuals, especially noticeable when viewers are close to the screen.
Cost: Panels with smaller pitches have more LEDs, which increases the price.

So, the "ideal" pitch is rarely a matter of the smallest number. It's a matter of detail vs. distance vs. budget.

Standard Pixel Pitch Options

LED walls are made in a broad variety of pitches, but here are some typical categories and where they come in handy:

P1.5mm-- P2.5mm: Very high resolution. Ideal for high-end indoor applications with the audience sitting very close, like conference rooms or exhibitions.
P3mm -- P4mm: An ideal compromise for indoor Direct View LED Video Walls for offices, stores, and events. Excellent image quality without the premium price of ultra-fine pitches.
P5mm -- P6mm: Functional for moderately sized facilities with 15 to 25 feet viewer distance, such as churches, conventions, or auditoriums.
P8mm -- P10+mm: These are primarily used for outdoor signage, stadiums, and concerts where viewers stand far from the screen.

For example, if you're installing 3D LED wall panels for a shopping mall attraction, a P2.5 wall would allow close-up viewers to enjoy fine detail. But for a concert stage backdrop, a P6 screen will work just as well without inflating the budget.

The Cost Side of Pixel Pitch

Cost is one of the most significant factors. It is tempting to covet the crispest display available, but tighter pixel pitches add up in price quickly. Let's see why:

More LEDs per square meter: A P2.5 wall features over twice as many LEDs as a P5 wall of identical size.
Increased processing requirement: Higher pitches process more data, sometimes needing more powerful processing hardware.
Energy consumption: While current panels are efficient, lower pitches may still draw more power due to the increased number of LEDs.

For price differences:

An example of a P2.5 LED wall being nearly twice as expensive as an equally sized P5 wall.

A P1.9 wall can be three to four times more expensive than a P6 wall.

P6 or P8 pitch walls are much cheaper on a per-square-meter basis and hence are the preference for really huge or external installations.

These costs also have a ripple effect on logistics. Fine-pitch panels require greater precision in installation and, at times, more frequent upkeep. Shipping costs may also rise, particularly for sensitive modules.

Additional Considerations

While cost and distance of viewing are the primary determining factors, some other points are worth considering:

Content type: If the content contains minute text or complex graphics, a finer pitch will work better. For strong images like logos or live video streams, bigger pitches are adequate.
Lighting conditions: Outdoor LED displays require higher brightness, which is easier to provide in larger pitches.
Flexibility: Rental screens may need to be repurposed for different events, such as P3 or P4, and provide flexibility through multiple configurations.
Longevity: High definition panels tend to require more delicate care due to their high-density LED layout. Higher-pitch screens tend to be more durable for heavy use or constant transport.

Quick Guidelines for Choosing

Making it easier, here are some rules you might want to remember:

Audience closer than 10 feet: P2.5 or smaller.
Audience 10--20 feet away: P3 to P4.
If Audience 20 feet and above: P5 and above is generally sufficient.
Large installations with low budgets: A higher pitch (P6--P10) compromises cost for satisfactory viewing quality.

Engaging indoor displays or 3D LED wall panels: A fine pixel pitch delivers sharp images that appear sharp at very close range.

Conclusion

Deciding on the best pixel pitch relates to quality, audience distance, and price. Closing the pitch can lead to high-quality HD images, but it can also significantly increase prices. Tighter pitches produce crisp, high-definition photos but can inflate budgets very rapidly. Larger pitches are less expensive and ideal for large areas where spectators view from far away. Content type, lighting, and longevity also come into play when making the correct decision.

Cinstar, with its extensive LED display solution options, offers panels from fine pitch indoor Direct View LED Video Walls, through robust outdoor solutions and innovative 3D LED wall panels. With such versatility, projects can be matched to the most appropriate pixel pitch without sacrificing performance or budget considerations.
