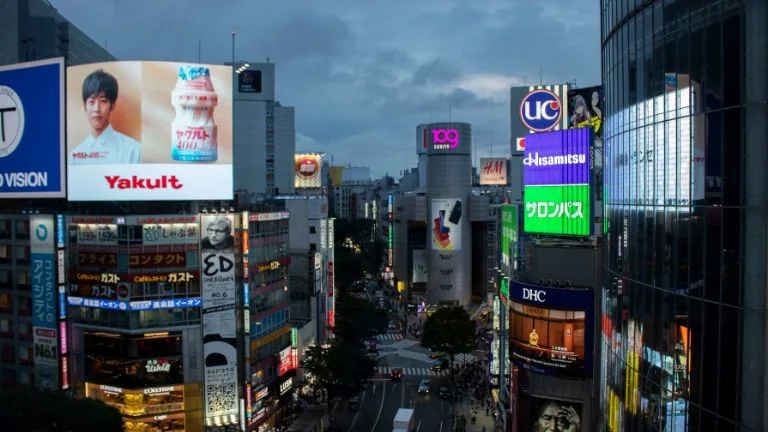

What powers those huge, glowing screens you see on highways or lighting up Times Square? Those are not gigantic TVs; they are LED billboards that changed the way brands communicate with the world. With their eye-stopping pictures and 24/7 visibility, LED billboards are ideal for outdoor advertising.

But how do they work? If you've ever been curious about what the technology behind such gaudy billboards is, then you're in the right spot. In this beginner's guide, we'll demystify everything you need to know, from the internal mechanics to how and why they're a powerful tool for modern marketing.

What is an LED Billboard & how do they work?

An LED billboard is a large digital display that utilizes Light-Emitting Diodes (LEDs). It shows images and videos. Unlike static billboards, which present a single image, LED billboards can display moving media, such as animations, videos, and scrolling advertisements.

Digital billboards are weatherproof and function day and night. They are bright and readable to be used for outdoor advertising, drawing the attention of brands from afar.

The Basic Components of an LED Billboard

To get some sense of how an LED billboard operates, it's useful to know what it is made up of:

1. LED Modules

These are the building blocks the display is constructed from. An LED module contains sets of red, green, and blue LEDs (more accurately, RGB LEDs). If different intensities of these are blended, the screen will be capable of displaying millions of colors.

2. Cabinets

Some LED modules are mounted in a larger metal cabinet. These cabinets are weatherproof and endure exposure to the elements, such as rain, wind, and sunlight.

3. Control System

This is the "brain" of the sign. The control system receives content from a media player and tells every LED to come on. Most systems offer remote control so that content can be updated instantly anywhere.

4. Power Supply

LED signs need a good power supply. The power supply turns electricity into the correct voltage required to power the LEDs efficiently and safely.

5. Cooling System

Since LED billboards are in use 24/7, they generate heat. Internal ventilation or fans prevent overheating and extend the life of the screen.

Also read: How LED Billboards Are Transforming Transportation Advertising

How do LED Billboards Create Images?

The trick behind LED billboards is pixel control. One pixel is made up of infinitesimally small red, green, and blue LEDs. When the control system passes a signal, each LED glows as bright as needed. By changing the brightness of the three colors, the billboard displays a full-color image.

Visualize an electric painting made up of thousands of small lights, the total of which is combined to form the big picture.

Pixel Pitch: Why It Matters

Pixel pitch is just one of the industry's primary terms in the LED world. Pixel pitch is a measurement (in millimeters) from the center of a pixel to the center of the adjacent pixel.

The lower the pixel pitch, the more detail and image quality, which is wonderful for displays that users will be viewing from up close, such as in a theater or home theater environment.
A higher pixel pitch is acceptable for interstate billboards because individuals are that far away.

Pixel pitch correct is a function of view distance, message type, and budget.

Why LED Billboards Are So Popular

There are several valid reasons municipalities and businesses are adopting LED billboards:

1. High Visibility

LED billboards are illuminated and attract drivers and pedestrians around the clock, even in daylight. Your message will be seen in any environment.

2. Dynamic Content

Unlike static printed billboards presenting a single advert, LED billboards can present multiple adverts, show changing messages, and even live video.

3. Easy to Update

Content is rapidly updated. Upload a fresh advert remotely within a few minutes, and conserve printing costs and time.

4. Long Lifespan

LED boards are long-lasting. They may last for over 100,000 hours when serviced routinely, thus an investment worth making in the long run.

5. Eco-Friendly

LEDs use less power compared to traditional illumination. And since you will not be printing or replacing vinyl, LED billboards are eco-friendly.

Conclusion

Whether you are a businessman, an advertiser, or a city planner, LED billboards have unprecedented flexibility and advantages. Their bright exhibition, ease of updating, and minimal power requirements make them a smart investment in today's advertising world.
